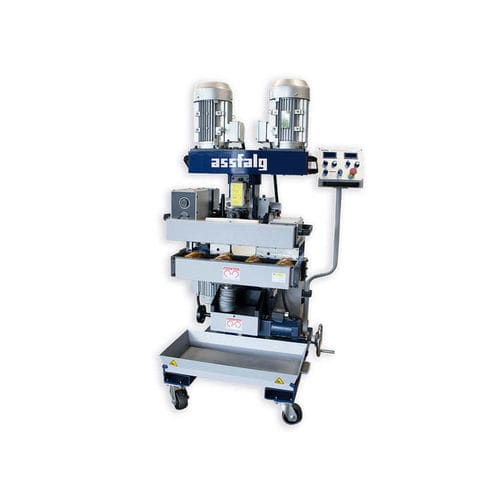

Electric chamfering machine A317

deskfor weld seam preparationweld preparation

The A317 sheet metal edge milling machine is designed for applying large-area weld bevels at angles from 0° to 90°, suitable for workpieces with thicknesses from 9 to 150 mm. The A317 enables the precise application of large-area weld bevels in an angle range from 0° to 90°. The machine is extremely robust and demonstrates its strength with a wide variety of materials, from structural steel to stainless steel. Surface qualities of Ra 3.2 - 6.3 are achieved. A special feature of the A317 is its large clamping and machining range: workpieces with thicknesses from 9 to 150 mm can be clamped securely and machined precisely. The automatic workpiece clamping via a switch is quick, safe and easy to use, making it very convenient to operate. - Outstanding tool life and cutting performance even with stainless steel material - Continuously variable automatic feed regulation 0 - 1.5 m/min - Automatic workpiece clamping - Swivelling, ergonomic operating display - Digital speed and feed rate display - Spring-mounted swivel castors for levelling out floor unevenness - Working height 855 - 970 mm Chamfer width [mm]: 0 - 150 Chamfer angle: 0° - 90° Technical data: Model: A317 Motor: 6.4 kW | 500 - 1050 rpm Energy: 400 V, 50/60 Hz Max. chamfer width: 150 mm FAQ Highlights: - Weld seam preparation refers to the measures and work steps that are taken before the actual welding process in order to create optimum conditions for a high-quality and stable welded joint. - Objectives: Improve weld quality, facilitate welding process, avoid defects. - Typical steps: Cleaning welding surfaces, chamfering edges, edge rounding or bevelling, selection of seam type, positioning workpieces. - Tools/Machines: Handheld deburring and chamfering tools, edge grinding machines, grinding machines. - Edge rounding: Removes sharp edges for safety, achieved by milling or chamfering with special machines. - Machines for edge rounding: Deburring machines, edge milling machines, chamfering machines. - V-prism edge milling machine: Required for small workpieces for secure hold and precise processing. Key Specifications / Technical Features: - Model: A317 - Motor: 6.4 kW | 500 - 1050 rpm - Energy: 400 V, 50/60 Hz - Max. chamfer width: 150 mm - Chamfer angle: 0° - 90° - Workpiece thickness: 9 - 150 mm - Automatic workpiece clamping - Continuously variable automatic feed regulation: 0 - 1.5 m/min - Working height: 855 - 970 mm - Surface quality: Ra 3.2 - 6.3
