Electric beveling machine A512stationaryfor weld seam preparationflexible
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Type
- stationary
- Applications
- flexible, for sheet metal, for weld seam preparation
- Other characteristics
- automatic, stainless steel, for steel, with adjustable angle, heavy-duty, with automatic feeder, with speed controller, variable-speed
- Power
4.4 kW
(5.98 hp)- Rotational speed
Max.: 1,450 rpm
(9,110.6187 rad.min-1)Min.: 750 rpm
(4,712.389 rad.min-1)- Chamfer width
Max.: 70 mm
(2.8 in)Min.: 0 mm
(0 in)- Chamfer angle
Max.: 75 °
Min.: 10 °
Description
Product overview

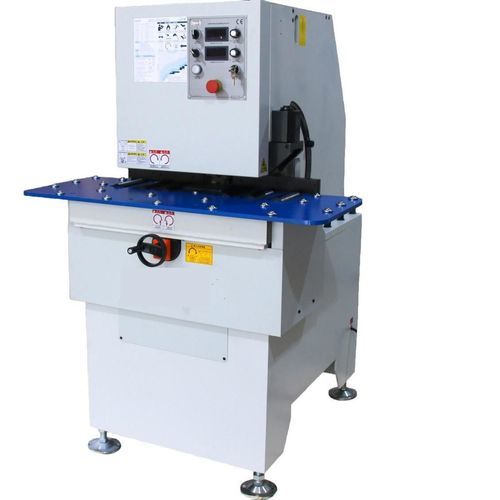

The A512 is a bevelling machine engineered for consistent chamfering of steel and stainless steel sheets. It features a reinforced feed unit and four driven double feed rollers that ensure smooth, reliable material transport under heavy workloads. The machine supports chamfer widths up to 70 mm and an adjustable bevel angle range from 10° to 75°, enabling flexible processing of varied part geometries.
Professional advantages
Technical data
Characteristics / technical specifications
The A512 is a bevelling machine engineered for consistent chamfering of steel and stainless steel sheets. It features a reinforced feed unit and four driven double feed rollers that ensure smooth, reliable material transport under heavy workloads. The machine supports chamfer widths up to 70 mm and an adjustable bevel angle range from 10° to 75°, enabling flexible processing of varied part geometries.
Professional advantages
- Durable cutting performance on steel and stainless steel
- Stepless automatic feed control (0–1.5 m/min)
- Stepless speed control with digital display
- Mechanical workpiece clamping via handwheel
- Intuitive operator display
- Adjustable working height: 850–1000 mm
Technical data
- Model: A512
- Motor: 4.4 kW (750–1,450 rpm)
- Power supply: 400 V, 50/60 Hz
- Max. chamfer width: 0–70 mm
- Angle adjustment range: 10°–75°
- Feed system: four driven double feed rollers
- Feed rate: stepless automatic control 0–1.5 m/min
- Speed control: stepless
- Workpiece clamping: mechanical via handwheel
- Displays: digital speed and feed rate; intuitive control
- Working height: 850–1000 mm
Characteristics / technical specifications
- Model: A512
- Motor power: 4.4 kW
- Motor speed: 750–1,450 rpm
- Voltage / Frequency: 400 V, 50/60 Hz
- Max. chamfer width: up to 70 mm
- Bevel angle: 10°–75°
- Feed control: stepless 0–1.5 m/min
- Workpiece clamping: mechanical (handwheel)
- Feed rollers: four driven double rollers
- Working height: 850–1000 mm
