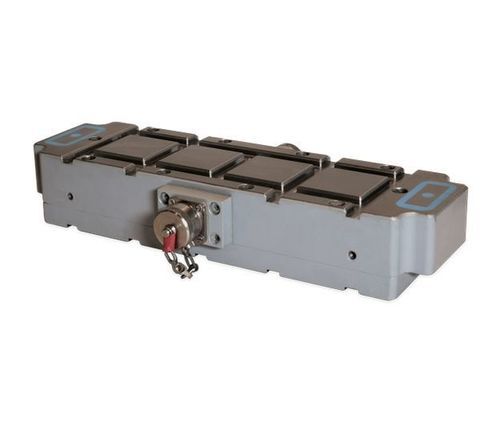

Electro-permanent magnetic chuck

electro-permanent with square polesrectangulardouble-face

Overview
The Triplemag electropermanent magnetic modules provide bi-directional adhesion, clamping both the workpiece and the module to the machine table for milling, turning and general machining tasks.

Applications

• Milling (roughing and finishing)
• Turning
• Drilling
• Sawing, welding, assembly and other clamping operations

Technical data (summary)
Model — Dimensions [L x W x H] — Number of poles — Weight
TM 503 — 220 x 180 x 55 mm — 2 x 4 + 1 x 2 — 12 kg
TM 505 — 340 x 100 x 55 mm — 2 x 4 + 1 x 2 — 13 kg

Description
Triplemag EPM modules include separately switchable positioning magnets to ensure repeatable placement on the machine table. Pole extensions compensate for uneven workpieces and permit plane-parallelism up to 0.01 mm. The solid-steel surface increases resistance to hot chips and coolant compared with epoxy-coated plates. Multiple modules can be linked to clamp larger parts. In case of power loss or control-line failure the modules retain full holding force; two-button operation on the controller and cable remote prevents accidental release.

Professional advantages

• Bi-directional magnetic adhesion (both sides)
• Separately activated positioning/holding magnets
• Expandable: multiple modules combinable and controllable for large parts
• Reduced setup times and fast positioning for 5-sided machining
• Low vibration during milling and even distribution of holding force
• Pole extensions enable plane-parallelism up to 0.01 mm
• Distortion-free clamping of uneven raw parts using fixed and mobile pole extensions
• No need for under-supports
• High resistance to chips and coolant due to solid steel body

Technical specifications

• Series: Triplemag
• Available sizes (examples): 220 x 180 x 55 mm; 340 x 100 x 55 mm
• Models and weights: TM 503 — 12 kg; TM 505 — 13 kg
• Number of poles: 2 x 4 + 1 x 2
• Holding force: approx. 160 N/cm² (≈ 400 kg per pole)
• Pole pitch: square pole 50 x 50 mm
• Surface: solid steel
• Features: bi-directional adhesion; separately switchable positioning magnets; combinable modules; safe retention on power failure; two-button safety operation
