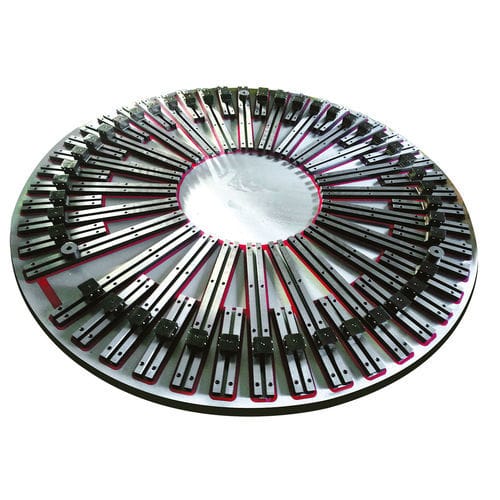

Electro-permanent magnetic chuck EPRadial
radialcircularround

electro-permanent magnetic chuck
electro-permanent magnetic chuck
electro-permanent magnetic chuck
electro-permanent magnetic chuck
electro-permanent magnetic chuck
electro-permanent magnetic chuck
electro-permanent magnetic chuck
Add to favorites
Compare this product


Characteristics

Technology
electro-permanent
Type
circular, round, radial
Applications
for grinding
Other characteristics
with radial pole pitch

Description

These Electropermanent Magnetic Chucks are ideal for clamping distortionfree big discs, rings or bearings for windmills. Even hardened rings can be finished best. Centric holes or through holes can be drilled. All the advantages of fixed and mobile pole extensions of Magnaslot can be used, to reach best surface quality. Application: - Universal use for clamping ferromagnetic workpieces, particularly on lathes and rotary table grinding machines - Ideal for bearing ring processing, also for hard processing Professional advantages: - Extremely short set-up times due to simple and fast clamping of workpieces - 5-side machining with less stress, less torsions, less vibrations by means of fixed and mobile pole extensions - No damages to the magnetic chuck by breakouts or through machining, if pole extensions are used - Sensible magnet power adjustment for thin workpieces or for aligning Features: - Extremely high magnetic power with activation within secondss - Through holes, poleshoes without or with T-slots, fixed and mobile pole extensions for ease of clamping and machining - The shielded and protected cable from the controller can be connected to the chuck by bayonet or slipring. The chuck controller can be integrated in CNCmachine controller
