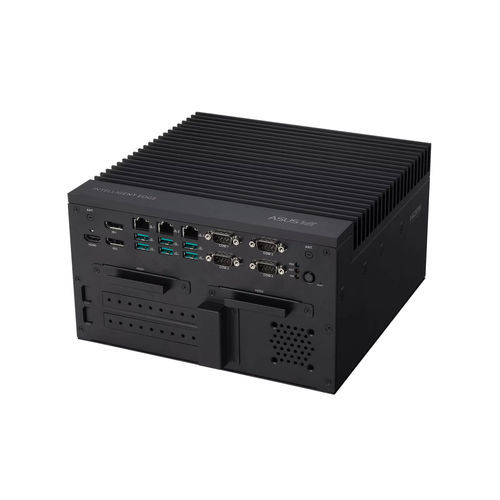

EDGE PC PE5101D

boxwall-mounted12th Generation Intel® Core™

The ASUS IOT PE5101D is a rugged high-performance edge computer with an Intel® R680E chipset that supports Intel® 13th and 12th Core™ processors featuring up to 24 cores and 32 threads, and DDR5 support up to 4800 MHz. A dual 2.5-inch hot-swappable HDD tray and RAID 0/1 support takes both data security and convenience into consideration. Two PCIe slots can accommodate graphics card and add-on cards up to 200 watts for various applications such as AI inference and machine vision. With phenomenal thermal design and power solutions, the PE5101D supports wide temperatures ranging from -25° C to 60° C, and wide-range 8 to 48V DC-in with ignition power control. Furthermore, it features various I/O connections including three 2.5 GbE ports, six COM ports, ten USB ports and optional 8-bit isolated DIO. It also integrates three M.2 slots for Wi-Fi, 4G/5G and NVMe storage, and one mini PCIe slot for various add-on modules. The mechanical design satisfies MIL-STD-810H US military testing standards and is engineered to withstand shocks and vibration. PE5101D is a high-performance and powerful edge computer that is suitable in variety of challenging environments such as smart factory, intelligent transportation, Kiosk, machine vision, intelligent video analytics (IVA) and more.
