Expansion PC PE1000S

boxDIN railIntel® Celeron® J6412

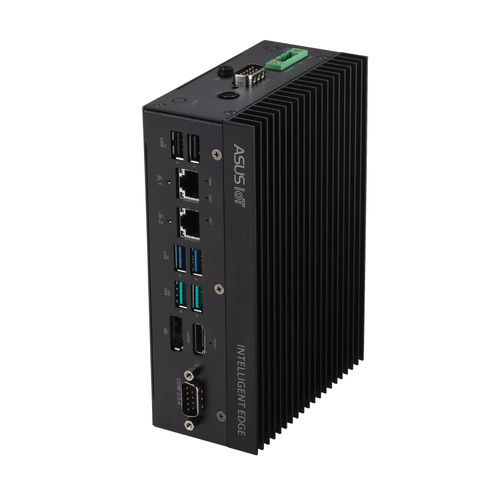

ASUS IoT PE1000S is an ultra-compact and rugged fanless din-rail gateway with an Intel® Atom® x6000 series or Celeron® J6412 processor. It features a rich lineup of I/O ports to communicate between multiple devices and provide highly efficient data collection. The ultra-compact chassis is ideal for space-limited environments and measuring just 56 x 110 x 160 mm. With phenomenal thermal design and power solutions, PE1000S supports wide temperatures ranging from -25° C to 70° C, and wide-range 9 to 36V DC-in. Connectivity options include two 2.5 GbE ports, up to six COM ports, six USB ports, and one 2.5-inch SSD is also supported. PE1000S also offers three M.2 slots for WiFi, 4G/5G, and an NVMe® port for expansion flexibility. For the POE SKU, it offers two additional 2.5 GbE PoE+ to meet the IEEE802.3at standard, and it supports 25.5-watt power output per port. ASUS IoT PE1000S is engineered to withstand shocks and vibration, and it meets the military-grade MIL-STD 810H standard. Built for space-limited, challenging environments, it’s ideal for a wide range of uses, including smart factories or energy management systems ― or it can be used as an automatic gate controller and more.
