Plastic filter housing
with ceramic membranefor liquidshigh-pressure

Plastic filter housing - atech innovations GmbH - with ceramic membrane / for liquids / high-pressure
Plastic filter housing - atech innovations GmbH - with ceramic membrane / for liquids / high-pressure
Add to favorites
Compare this product


Characteristics

Filter type
with ceramic membrane
Fluid
for liquids
Material
plastic
Other characteristics
high-pressure

Description

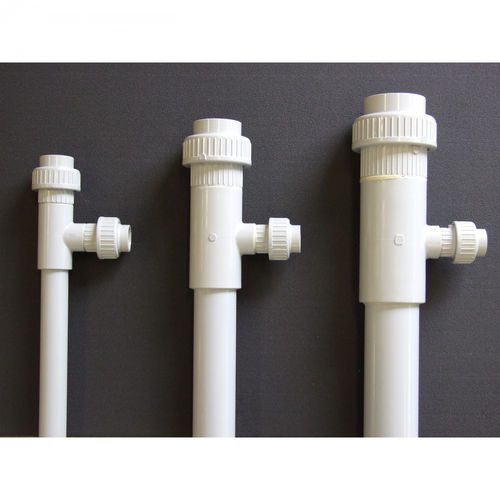

Pressure housing made of plastic PVC-C or PP PVC-C modules: especially for small plants or custom designs The modules are made of PVC-C and can be used up to pressure stage PN 10 and a temperature of 80°C/176°F without any problems. The significantly lower price compared to stainless steel modules and the simplified housing design are very beneficial as there is only one membrane element in the housing. The plastic module was especially developed for small plants, in particular for standard plants with filter surfaces of 0.24 m², 0.53 m² and 1.06 m² per module with channel cross-sections of 3.3 to 3.8 mm. For applications in the food and pharmaceutical industries, we offer special vessel designs that meet all requirements of hygiene standards (e.g. US 3-A). Due to their design these vessels provide perfect cleaning and sterilizing capabilities (use of CIP and SIP systems is possible). Moreover we also offer pressure vessels according to ASME-requirements. Our range of products is rounded off by special plastic modules that have been especially developed for use with highly corrosive media.
