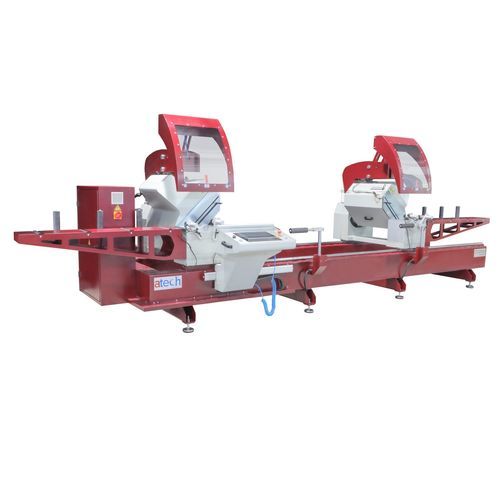

CNC double-head miter saw ZIGMA-550FA

for PVCfor aluminumfor wood

Zigma 550FA is a full-automatic double head saw machine designed to cut aluminium, PVC, and wooden profiles, straight or angled with its Ø550 mm saw blades. • 2 x 3,0 kW Motor • 15” PC touch screen • With its servo motor the head angles and head movements can be positioned precisely • By servo motor angles between -22,5 and +45 can be positioned automatically. • Robust machine body • With a hydro-pneumatic cutting unit the speed of the blade can be adjusted precisely. • The saw blade stroke is adjustable from the top. That means, that you can limit how far the saw blade comes out. • Cuts greater than the strok • Slicing, angle slicing, pieces of cutting profiles list and etc. are programmable. • 2 x Ø550 mm saw blades • 4 pcs. Horizontal clamps • Airgun • Conveyor on movable saw head • 2 pcs. profile rest system • Printer • Spray mist lubrication system • 2 pcs. Vertical clamps. • Chip collector monifold • 4,0 kW Electric motor • Conveyor on fixed saw head • Spray lubrication system
