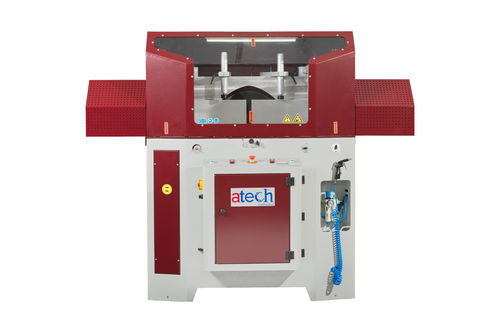

Miter saw 7 series

for aluminumfor non-ferrous metalsprofile

Heavy Duty Upcut Miter Saw Designed For Straight and Miter Cuts of Aluminium Profile and Non-Ferrous metals • Strong machine body • Greater cutting range than other manufacturers • Two-hands safety system • Cutting at standard angles and any intermediate angles • Movable Miter • World brand components (saw blade, electrical components) • More powerful chip vacuum system with one manifold • Saw blade rising speed is hydro-pneumatically adjustable • Interior LED lighting • Miter lock angles at 75°,60°,45°,30°,22.5°,15°,0° both left and right • Pivoting range from -75° left to +75° right infinitely adjustable Engine Power: - 5.5 kW, 7.5 HP 400 V Trifaze/3Phase, 50/60 Hz Sizes of Saw: - D=700 mm d=38 mm RPM: - 2000 Dimensions: - 205 x 174 x 169 cm Total Weight: - 650 kg Air pressure: - 6-8 Bar, 140 lt/min Crater A-760 Engine Power: - 5.5 kW, 7.5 HP 400 V Trifaze/3Phase, 50/60 Hz Sizes of Saw: - D=760 mm d=38 mm RPM: - 2000 Dimensions: - 205 x 174 x 169 cm Total Weight: - 660 kg Air pressure: - 6-8 Bar, 150 lt/min • 1 pc. 700/760 mm saw blade • 2 pcs. vertical clamps • 1 pc. Horizontal clamps • Air blow gun • Spray mist lubrication system • Automatic opening for upcover • Conveyor • 1 pc. Horizontal clamp • Chip collector manifold
