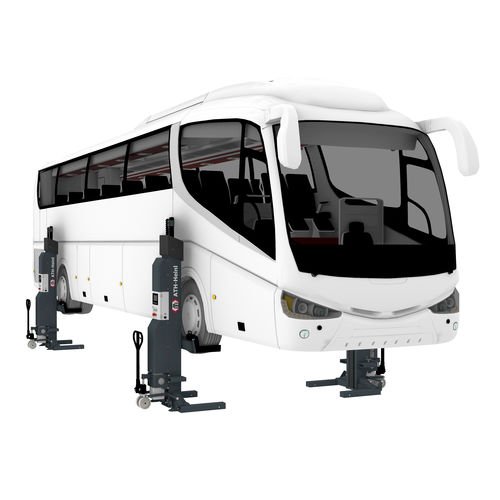

Electro-hydraulic mobile column ATH RG5.5-4 WB24 Vdcbattery-poweredfor trucks
Add to favorites
Compare this product
Characteristics
- Operation
- electro-hydraulic
- Voltage
- 24 Vdc, battery-powered
- Applications
- for trucks, for buses, for car, for forklift trucks, for tractors
- Lifting height
Min.: 0 mm
(0 in)Max.: 1,750 mm
(68.898 in)- Lifting time
70 s, 80 s
- Motor power
2.2 kW
(2.99 hp)- Column height
2,750 mm
(108.27 in)
Description
Electro-hydraulic wheel gripper system with battery operation and wireless control
Control unit including unit cover on each column for flexible use
Master unit controls all operating information on each column and an extension up to 16 columns
Integrated quick charger per column, enables charging during use.
Mobile kit and forklift attachment on the columns enable a faster change of position
Safety Control: hydraulic shut-off valve, electronic synchronization monitoring and electromagnetic safety locks
Safety Lock: ability to lock the load on to the safety mechanism
Multifunctional mounting via variable wheel fork with individual setting options
More information
Load capacity per column 5.5 t
