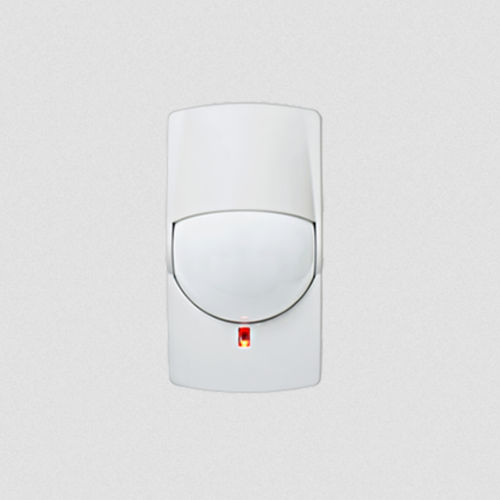

People detector ACW-PIR

intrusionPIRplug

The PIR range facilitates the monitoring of sites thanks to its alarm and counting detection modes. The alerts are transmitted on Sigfox or LoRaWAN networks and its configuration is configurable from the tools of the ATIM suite. Compatible with the computer and mobile versions of the IoT web platform, data visualization and the configuration of alerts according to predefined thresholds are made possible in a few clicks. The installation and the handling are done in less than 10 minutes: Plug & Play. Commonly used in cities, industry and connected buildings, the ACW-PIR is suitable for many applications such as : -Monitor the occupancy of meeting rooms -Count the number of cars passing through a parking lot -Detect intrusions Description MONITORING - Detection distance up to 12 meters Detection angle 90° | 360° ANTENNAS - Integrated AUTONOMY* - Indoor: 3+years with 1 detection/h Outdoor: 5+ years with 1 detection/h BATTERY - Indoor: 1x pile 3.6 V 2/3A0A Outdoor: 2x piles 3.6 V BOX - Version IP30 Version IP54 Version IP55 MODES - Counting Alarm CONFIGURATIONS - USB Downlink PLUG & PLAY - Installation in less than 10 minutes
