Pneumatic manipulator

vacuumglassfor windows and doors

Product overview

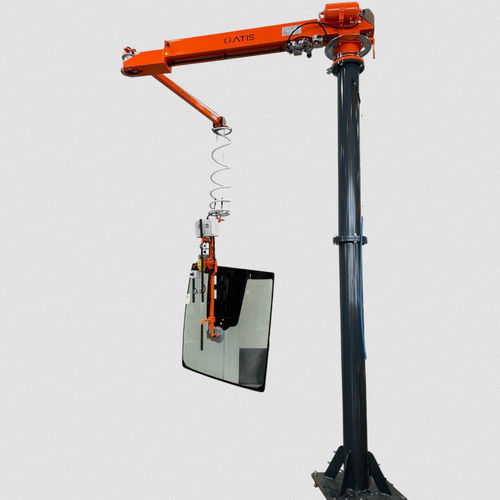

The VM-100 vacuum manipulator for windshields is a handling device designed to lift, transport and position automotive and industrial flat glass using pneumatic vacuum technology. It provides a controlled, non-marking grip through suction cups and pneumatic actuation to enable precise and repeatable handling operations.

The Challenge: Safe Windshield Handling

• Precise control of movements
• Secure grip without surface damage
• Reduced operator risk
• Protection of product integrity

Risks

• Breakage or micro-cracks in the glass
• Production scrap and rework
• Delays in production cycle
• Workplace safety incidents

The Solution: Vacuum Manipulator for Windshields
The VM-100 uses vacuum suction cups and pneumatic controls to handle windshields with minimal risk and high precision.

• Safe and gentle grip: suction cups adhere without marking or stressing the glass surface
• Smooth and controlled movements: pneumatic actuation enables precise positioning and repeatability
• Improved ergonomics: reduces manual handling and operator fatigue
• Increased productivity: accelerates handling operations and reduces handling errors

Applications of Vacuum Manipulators for Glass

• Automotive assembly and repair
• Flat glass production and processing
• Window and door manufacturing
• General manufacturing requiring precise glass handling

Why Choose a Vacuum Manipulator
A vacuum manipulator reduces breakage costs, improves safety and product quality, and optimizes handling time. Systems like the VM-100 can be configured to match specific process requirements for an effective tailored solution.

Conclusion

• Investing in a vacuum manipulator for glass improves safety, precision and efficiency
• Delivers consistent handling performance and reduces production losses

Technical specifications

• Technology: pneumatic vacuum manipulator (vacuum suction + pneumatic actuation)
• Main functions: lift, transport and position windshields and flat glass components
• Grip system: suction cups for non-marking, secure adhesion
• Movement control: pneumatic actuation for smooth, precise positioning
• Ergonomics: reduces operator physical strain and improves workplace safety
• Productivity: accelerates handling operations and reduces errors
• Customization: configurable to specific customer applications and requirements
• Primary sectors: automotive, glass industry, construction (windows/doors), manufacturing
