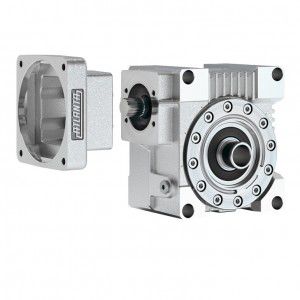

Worm servo-gearbox HP seriesright anglehigh-performanceshaft
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Shaft orientation
- right angle
- Performance
- high-performance
- Applications
- shaft, for servo motors
- Rotational speed
Min.: 500 rpm
(3,141.5927 rad.min-1)Max.: 5,000 rpm
(31,415.9265 rad.min-1)
Description
ATLANTA HP-High Performance Servo Worm Gear Units
have been specially developed for use with the latest three-phase and DC servo-motors.
The following are typical features of our HP-Servo Gear Units:
Backlash: <2 arcmin, adjustable
5 sizes: centre distance 50, 63, 80, 100 and 125mm
8 ratios: 4.75; 6.75; 9.25; 14.5; 19.5; 29; 39; 50 and 52:1
Output torque: from 60 to 2200 Nm
Output hollow shaft:
key connection
clamp connection
generously dimensioned and supported for high additional forces
Very high rigidity
Very high precision
ATEX design available
