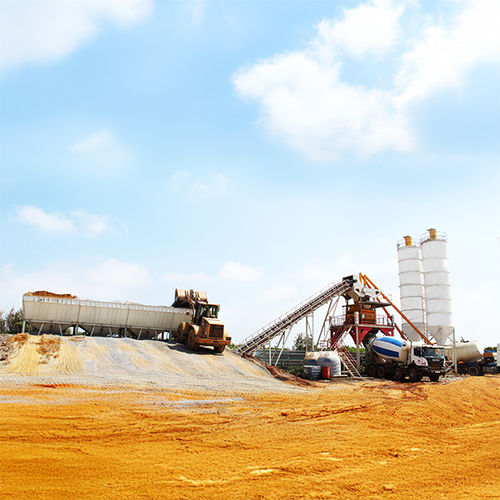

Stationary concrete batching plant Fastmix 120FX

twin-shaftwith belt conveyor

FASTMIX LINEAR 120 – Fixed Modular Linear Concrete Batching Plant | 120 m³/h Capacity Top-tier industrial batching plant built for high-volume production. The FASTMIX LINEAR 120 is a fixed modular linear concrete batching plant engineered for intense production environments. With a 120 m³/h output, a powerful 3 m³ twin-shaft mixer, and a 90 to 120-second cycle, it delivers up to 1000 to 1200 m³ of concrete per day, maintaining high quality and mix uniformity. Its linear modular layout makes it the ideal solution for commercial ready-mix facilities, large infrastructure sites, and industrial batching operations. Equipped with 4 x 30 m³ aggregate hoppers, a 1200 mm wide conveyor, and a ±1% weighing precision system, the FASTMIX LINEAR 120 guarantees continuous flow and total process control. Key Features: - Produces up to 1,200 m³ of concrete per day - Ideal for large-scale, high-volume operations - 3 m³ twin-shaft mixer ensures top-level performance - Supplied with 50T, 80T, 100T, or 120T cement silos as needed - Installed power: 400 kW
