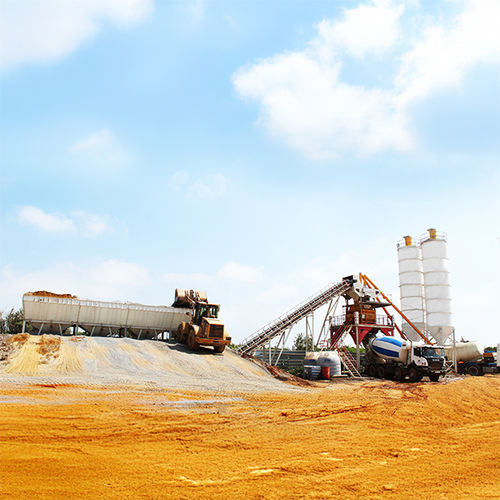

Stationary concrete batching plant Fastmix 100FX

twin-shaftwith belt conveyor

FASTMIX LINEAR 100 – Fixed Modular Linear Concrete Batching Plant | 100 m³/h Capacity High-performance fixed plant designed for industrial-scale concrete production. The FASTMIX LINEAR 100 is a fixed modular linear concrete batching plant built to support commercial ready-mix operations, infrastructure development, and large-scale industrial applications. With a nominal output of 100 m³/h, a 2 m³ twin-shaft mixer, and a cycle time of 90 to 120 seconds, it delivers up to 1,000 m³ of concrete per day with remarkable consistency. Its modular linear layout ensures smooth material flow, easy maintenance access, and seamless integration into complex production sites. The plant includes 4 x 15 m³ aggregate hoppers, a 1,000 mm wide conveyor, and a ±1% accurate weighing system for precise batching and optimal concrete quality. Key Features: - Produces up to 1,000 m³ of concrete per day - 2 m³ twin-shaft mixer for high-strength, uniform concrete - Linear configuration for streamlined operation and maintenance - Supplied with 50T, 80T, 100T or 120T cement silos as needed - Installed power: 280 kW
