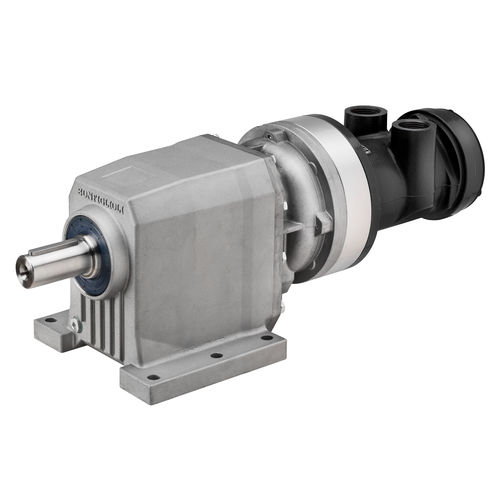

Gear air motor LZL05-BF363-B-140

helical gearvanestainless steel

"The LZL Direct Drive Vane Motor is your solution for high-torque, low-speed challenges. It’s not just a motor; it’s peace of mind for your toughest environments. Stop Maintenance Headaches: Lube-free vanes mean you install it and forget it. No more constant greasing. Rugged Control: Get massive starting power with precise speed control to keep your mixing process perfect. You've got options: the range features 5 different models covering 1.05 to 6.5 kW, all available in standard or corrosion-proof stainless steel versions, and a set of accessories allowing speed sensor integration. It’s the durable, low-maintenance (lube-free) solution built to protect your reputation, especially in tough environments. You can also use the free online selector to get a motor recommendation and the 3D plans in about a minute. LZL05-BF363-B-140 is an air motor delivering a maximum power of 1,2kW / 1.6 hp. The motor is reversible Air consumption at maximum power: 36l/s / cfm Free speed 65 r/min Min starting torque: 624Nm / 460 ft lb Speed at max output: 31r/min Stall torque: 744 Nm / 551 ft lb Torque at max output: 372 Nm / 274 ft lb Weight: 22 kg / 49 lb External parts material: Powder coated cast iron/Aluminium Lubrication free vane"
