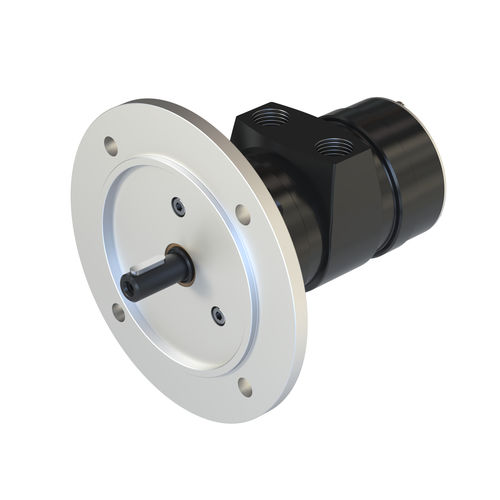

Vane air motor LZL05-L-P-IEC

standardATEXlubricated

"The LZL Direct Drive Vane Motor is your solution for high-torque, low-speed challenges. It’s not just a motor; it’s peace of mind for your toughest environments. Stop Maintenance Headaches: Lube-free vanes mean you install it and forget it. No more constant greasing. Guaranteed Safety: Fully ATEX certified and available in stainless steel. Perfect for explosive, corrosive, or hygienic zones. Rugged Control: Get massive starting power with precise speed control to keep your mixing process perfect. You've got options: the range features 5 different models covering 1.05 to 6.5 kW, all available in standard or corrosion-proof stainless steel versions, and a set of accessories allowing speed sensor integration. It’s the durable, low-maintenance (lube-free) solution built to protect your reputation, especially in tough environments. You can also use the free online selector to get a motor recommendation and the 3D plans in about a minute. LZL05-L-P-IEC is an ATEX certified air motor delivering a maximum power of 1,3kW / 1.7 hp. The motor is reversible Air consumption at maximum power: 37l/s / cfm Free speed 9000 r/min Min starting torque: 4,8Nm / 3.5 ft lb Speed at max output: 4300r/min Stall torque: 5,8 Nm / 4.3 ft lb Torque at max output: 2,9 Nm / 2.1 ft lb Weight: 3,9 kg / 8,6 lb External parts material: Powder coated cast iron/Aluminium Lubrication free vane IP66 ATEX code dust: Ex II 2 D Ex h IIIC T85°C Db X ATEX code gas : Ex II 2 G Ex h IIC T6 Gb X "
