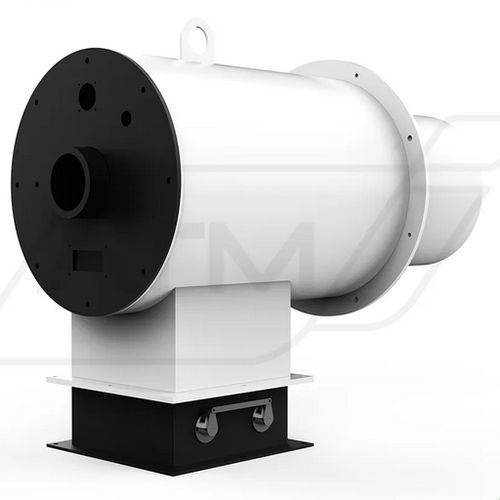

Duoblock burner MAT series

fuel oilnatural gasmulti-fuel

Summary
Industrial duoblock burner Duobloco MAT with separate fan, designed for applications requiring high reliability, precise combustion control and flexible installation. Compatible with natural gas, LPG, biogas and liquid fuels.

Detailed description
The Duobloco MAT burner is engineered for industrial processes demanding high thermal performance, operational safety and long service life. Its duoblock concept, with the fan separated from the burner body, provides installation flexibility for confined spaces or high-temperature environments. Designed to operate with natural gas, LPG, biogas or liquid fuels, the MAT model offers a wide modulation range for precise flame control, improved energy efficiency and reduced fuel consumption. Robust construction, automatic ignition system and advanced control options ensure reliable and safe operation in continuous and severe industrial processes. The Duobloco MAT is commonly used in boilers, process furnaces, industrial dryers and thermal systems where efficiency, environmental compliance and maintainability are required.

Key benefits

• Duoblock concept with separated fan for flexible installation
• Stable operation in high-temperature environments
• Compatible with multiple fuels
• Precise combustion and thermal power control
• Low emission options (low-NOx version available)
• Robust design for continuous industrial operation
• Easy maintenance and component access

Typical applications

• Industrial boilers
• Process furnaces
• Industrial dryers
• Air or fluid heating systems
• Continuous medium- and high-power thermal processes

Technical data
Thermal power: 80 – 23,000 kW
Compatible fuels: Natural gas, LPG, Biogas, liquid fuels
Gas inlet pressure: 1 – 3 bar
Control types: On/Off, two-stage, modulating, microprocessor control
Thermal efficiency: Up to 92%
NOx emissions: < 100 mg/Nm³ (low-NOx version)
Power supply: 220 / 380 V – 60 Hz

Options and configurations

• Low-NOx version
• Different control and automation systems
• Configuration adapted to fuel and required power
• Integration with industrial automation panels

Features / Technical specifications

• Duoblock concept: separated fan for increased installation flexibility
• Wide modulation range for precise flame control
• Automated ignition system
• Robust construction suitable for continuous operation in severe environments
• Reduced fuel consumption and high energy efficiency (up to 92%)
• Available low-emission version (low-NOx < 100 mg/Nm³)
• Compatibility with multiple fuels: natural gas, LPG, biogas and liquid fuels
• Typical gas inlet pressure: 1–3 bar
• Control options: On/Off, two-stage, modulating and microprocessor control
• Standard power supply: 220 / 380 V, 60 Hz
