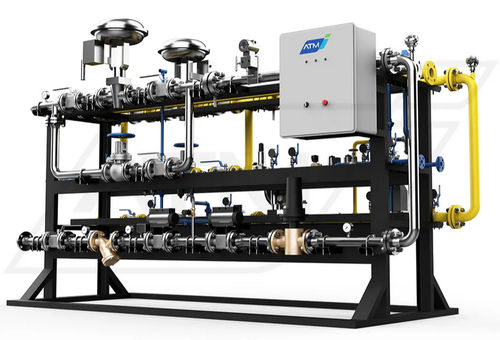

Multi-channel manifold gasfor pressure measurement devicesfor valves
Add to favorites
Compare this product
Characteristics
- Number of channels
- multi-channel
- Applications
- gas, for pressure measurement devices, for valves
- Other characteristics
- custom-made, modular, pre-assembled
- Operating pressure
Max.: 10,000 mbar
(145 psi)Min.: 20 mbar
(0 psi)
Description
Description
Industrial manifold assemblies custom-designed for interconnection of gas lines, valves and instrumentation, providing tightness and ease of installation. The Industrial Manifolds from ATM Engenharia are designed according to NBR 12.313 and are used to interconnect gas lines, valves, regulators and instrumentation in industrial processes that require a high level of safety and reliability. Each project is developed on demand by the engineering team, considering fluid type, operating pressure, plant layout and specific customer requirements. Manufactured to order, the manifolds provide structural integrity, leak tightness and installation practicality, and can be supplied as complete assemblies integrating all necessary equipment and components.
Main benefits
Typical applications
Technical data
Parameter | Specification
Fluid | Natural gas, LPG, N₂, O₂, and similar
Operating pressure | 20 mbar – 10 bar
Tests performed | Tightness, integrity and functional tests
Assembly | On skid or modular structure
Options and configurations
Features / Technical specifications
Industrial manifold assemblies custom-designed for interconnection of gas lines, valves and instrumentation, providing tightness and ease of installation. The Industrial Manifolds from ATM Engenharia are designed according to NBR 12.313 and are used to interconnect gas lines, valves, regulators and instrumentation in industrial processes that require a high level of safety and reliability. Each project is developed on demand by the engineering team, considering fluid type, operating pressure, plant layout and specific customer requirements. Manufactured to order, the manifolds provide structural integrity, leak tightness and installation practicality, and can be supplied as complete assemblies integrating all necessary equipment and components.
Main benefits
- Design according to NBR 12.313
- Custom development for each application
- Structural integrity and leak tightness
- Reduced on-site installation time
- Complete integration of valves and instrumentation
- Factory testing and validation prior to delivery
- Modular solution ready for operation
Typical applications
- Interconnection of gas distribution lines
- Industrial fluid distribution systems
- Gas plants and networks
- Industrial processes with integrated instrumentation
- Skids and industrial assemblies
Technical data
Parameter | Specification
Fluid | Natural gas, LPG, N₂, O₂, and similar
Operating pressure | 20 mbar – 10 bar
Tests performed | Tightness, integrity and functional tests
Assembly | On skid or modular structure
Options and configurations
- Sizing according to fluid type and pressure
- Integration of valves, regulators and instrumentation
- Supply as complete skid assembly
- Adaptation to plant layout
- Expansion and customization according to process
Features / Technical specifications
- Compliance with NBR 12.313
- Project engineering on demand considering fluid type and pressure
- Operating pressure range: 20 mbar to 10 bar
- Compatibility with gases: natural gas, LPG, N₂, O₂ and similar
- Tests: tightness, integrity and functional tests prior to delivery
- Assembly supplied on skid or modular structure ready for installation
- Modular solution integrating valves, regulators and instrumentation
