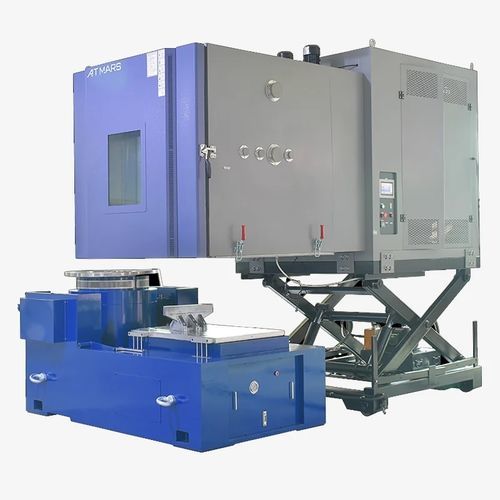

Thermostatic test chamber AHV series

climatichumiditytemperature

Product Presentation
The AGREE AHV series is a temperature, humidity and vibration test chamber designed to provide controlled thermal, humidity and electrical/mechanical vibration stress environments for aerospace, aviation, petroleum, chemical, electronics, communications and other R&D and production units. The chamber enables cyclic or static environmental tests and combined temperature–humidity–vibration simulations to validate product performance and reliability.

AGREE Chamber Application
The AGREE chamber is suitable for battery testing, aerospace and aviation components, automotive parts, electronic assemblies, quality inspection bodies, research institutes and universities. It shortens product development cycles by enabling environmental qualification, reliability verification and reproduction of field conditions.

Product Features

• Available in multiple workspace sizes; compatible with electro-dynamic and mechanical vibration systems — can be configured with or without a vibration table.
• Integrated design combining shaker (vibration table) and environmental (temperature/humidity) chamber for composite testing.
• Double refrigeration (dual-circuit) system for improved cooling performance.
• Supports composite environment tests: temperature + humidity + vibration in one setup.
• Multiple mobile and installation solutions to relocate the shaker or chamber to suit site constraints.
• Removable test chamber bottom plate to facilitate connection to various electric vibration tables.

Technical specifications

• Series / Model variants: AHV series (models: AHV-225, AHV-408, AHV-800, AHV-1000, AHV-1210, AHV-1728, AHV-5832)
• Performance condition: ambient +20℃ or circulating water +25℃, empty chamber (no specimen)
• Temperature range: -20 / -40 / -70℃ to +150℃
• Temperature fluctuation: ±0.5℃
• Temperature uniformity: ±2.0℃
• Temperature deviation: ±2.0℃
• Heating rate: average 3℃/min (examples: -20℃→+100℃, -40℃→+100℃, -60℃→+100℃, no load)
• Cooling rate: average 1℃/min (examples: +20℃→-20℃, +20℃→-40℃, +20℃→-70℃, no load)
• Humidity range: 20%RH ~ 98%RH
• Humidity fluctuation: ±2.0%RH
• Humidity uniformity: ±3.0%RH
• Humidity deviation: ±3.0%RH (>75%RH); ±5.0%RH (≤75%RH)
• Frequency range (vibration): 3 ~ 5000 Hz (adjustable)
• Noise level: ≤75 dB(A) measured at 1.0 m in steady state
• Sinusoidal thrust: 300 kg ~ 35 T (customizable)
• Displacement, maximum load and detailed vibration system parameters: see Vibration Test System Details
• Workspace volume (L): 225 / 408 / 800 / 1000 / 1210 / 1728 / 5832 (depends on model)
• Workspace dimensions (WxHxD mm) by model: AHV-225: 500 x 750 x 600; AHV-408: 600 x 850 x 800; AHV-800: 1000 x 1000 x 800; AHV-1000: 1000 x 1000 x 1000; AHV-1210: 1100 x 1000 x 1100; AHV-1728: 1200 x 1200 x 1200; AHV-5832: 1800 x 1800 x 1800
• Exterior dimensions (WxHxD mm) by model: AHV-225: 1050 x 1600 x 1950; AHV-408: 1160 x 2110 x 2500; AHV-800: 1200 x 2410 x 2900; AHV-1000: 1200 x 2400 x 3100; AHV-1210: 1300 x 2410 x 3200; AHV-1728: 1400 x 2410 x 3280; AHV-5832: 2000 x 2400 x 5340
• Interior material: matte SUS #304 stainless steel plates
• Exterior material: powder-coated carbon steel plates
• Insulation: rigid polyurethane foam and glass wool
• Refrigeration system: Copeland full-hermetic or BITZER semi-hermetic compressors; low-ODP refrigerants R404A / R23
• Cooling method: water-cooled or air-cooled options
• Controller: true-color LED touch-screen controller with multiple language options
• Lifting/movement: machine can automatically lift and move laterally; height adjustable according to vibration level
• Standards: GB/T 2423.10-2019; GB/T 2423.11-1997; GB/T 2423.12-1997; GB/T 2423.13-1997; GB/T 2423.14-1997; GB/T 2423.35-2019; GB/T 2423.36-2005; GB/T 2423.48-2018; GB/T 2423.49-1997; GB/T 2424.22-1986; GB/T 2424.24-1995
• Safety protections: heater dry-burn protection; heater over-current breaker; humidifier dry-burn protection; humidifier over-current breaker; humidifier low-water protection; compressor overheat and over-current protection; high-voltage protection; circuit breakers and phase-loss/over-voltage protection; low-water-level alarm for water tank
• Standard accessories: Ø50 mm cable glands x2; casters x4; stainless steel sample holders x2; transparent electrically heated insulating glass observation window; internal lighting
• Electrical supply: AC 380V (±10%), (50±0.5)Hz, 3-phase 4-wire + earth / other supply as specified
• Custom options: available on request
