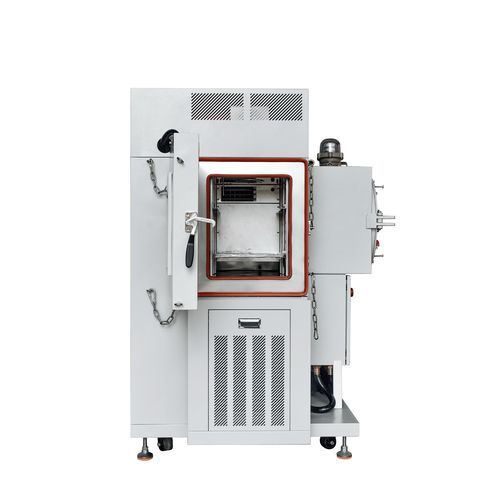

Climate chamber AH Series

humiditytemperatureenvironmental

Product overview
ATMARS AH Series environmental test chambers provide controlled temperature and humidity environments for laboratory and production testing. Models cover temperature ranges from -70°C to +150°C and humidity from 20% RH to 98% RH. Explosion-proof configurations and customer-specific options are available.

Applications

• Quality inspection and environmental testing for electronic products
• Electric appliances and communication equipment
• Automotive components and aerospace parts
• Plastic, metal, chemical and building materials
• Medical devices and military applications

Key features

• Explosion-proof design available (model-dependent)
• Compact chamber layout with small footprint
• Energy-efficient refrigeration using zero ODP refrigerants
• LED true-color ultrathin touch screen controller with English menu
• Transparent electrothermal double-layer glass observation window (standard)
• Standard accessories: lead holes, lighting lamp, casters, stainless steel trays, cable

Performance & specifications

• Temperature ranges by model: -20°C to +150°C / -40°C to +150°C / -70°C to +150°C
• Temperature fluctuation: ±0.5°C; uniformity: ≤2.0°C; deviation: ±2.0°C
• Heat-up (no-load): -20°C→+100°C in ~35 min; -40°C→+100°C in ~45 min; -70°C→+100°C in ~60 min
• Cool-down (no-load): +20°C→-20°C ~45 min; +20°C→-40°C ~60 min; +20°C→-70°C ~80 min
• Humidity range: 20% RH–98% RH; fluctuation: ±2.0% RH; uniformity: ±3.0% RH
• Noise level: ≤68 dB

Workspace volumes and dimensions

• Workspace volumes (examples): 80 L, 105 L, 225 L, 408 L, 800 L, 1 m³
• Interior dimensions (WxDxH) examples: widths 400/500/600/800/1000 mm; heights 500/600/750/850/1000 mm; depths 400–2025 mm (model-dependent)
• Exterior dimensions (WxDxH) examples: widths 650/700/800/1000/1200 mm; heights 1665–1980 mm; depths 1260–2025 mm

Materials and system

• Interior: matte SUS #304 stainless steel plates
• Exterior: powder-coated carbon steel with electrostatic spray
• Insulation: hard polyurethane foam and glass wool; seal: imported silicone
• Heating: Nichrome wire electric heater; controller: LED touch screen
• Compressor: hermetic single-stage or cascade type depending on model; refrigeration: TECUMSEH or equivalent; air- or water-cooled options
• Refrigerant: zero ozone depletion potential refrigerants

Safety precautions

• Heater no-load protection switch
• Humidifier no-load protection switch
• Heater and humidifier over-current breakers
• Compressor high-pressure, over-heat and over-current protection
• Over-voltage / phase-failure protector and circuit breaker
• No-fuse switch; humidifier low water level protector and warning

Standard configurations

• Transparent electrothermal double-layer glass observation window ×1
• Lead holes ×2; lighting lamp ×1; casters ×4
• Stainless steel sample trays ×2; cable ×1 (2.5 m)

Electrical supply & installed power
AC 3φ4W 380V 50Hz (R,S,T,N plus ground), voltage fluctuation ≤ ±10%. Typical installed power by model examples: 7 / 12 / 14 kW (varies with configuration).

Standards compliance & options
Compliant with GB-2423.x, GJB series and IEC60068-3 test stipulations (sensor at unit air outlet). Custom options and explosion-proof configurations available on request.
