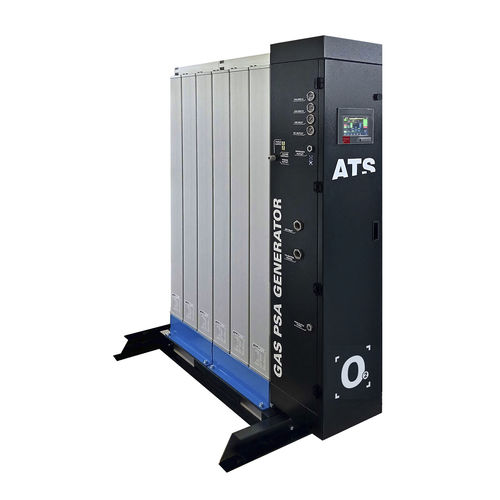

Pure oxygen generator OGO OXYGEN gold series

processindustrialmedical

STANDARD REFERENCE CONDITIONS: • ambient temperature: 20°C • inlet air pressure: 7.5 bar • dew point: Class 4 (ISO 8573-1) The main applications: Based on the different specifications of the produced oxygen, the OGO series fulfils the needs of different industrial sectors, in addition to the medical / hospital sector. How it works The feeding air, at right speed and pressure, reaches the first adsorber. Inside the bed of Zeolite Molecular Sieves (ZMS), oxygen is separated from the other gases present in the inlet air (nitrogen, CO, CO2, etc.) by selective surface adsorption. Subsequently, the produced oxygen passes from the absorber to the external oxygen tank. Here, once analyzed and validated in purity, it passes to the distribution line towards the point of final use. ll features of the product Oxygen analyzer zirconium oxide measuring cell as standard equipment: minimum duration of 5 years, maximum reliability and stability of measurement for the entire life span, no periodic calibration to be carried out and no maintenance. Dew Point: stable pressure dew point below -40°C. Industry 4.0 PLC 7" touchscreen: process managed by programmable logic, gas purity control in closed loop, continuous process monitoring, option serial RS232 -RS485, Ethernet and USB port, phase alarms and hourly counters, and automatic stand-by function. Flow meter: electronic mass flow meter, reliable flow measurement with maximum measurement stability.
