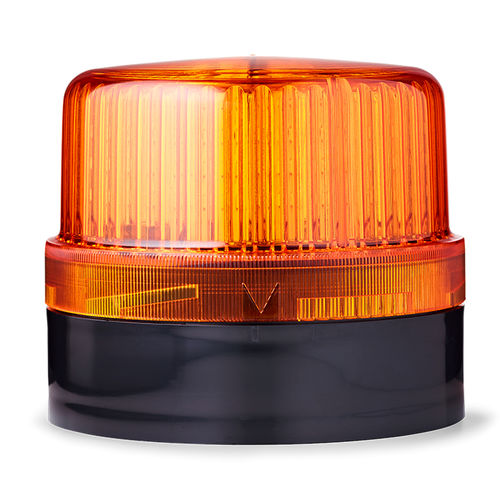

BLG LED flashing beacon:
- Ø 120 mm LED flashing beacon
- Good signalling effect from 48 LEDs
- High degree of protection IP 65
- Optional mounting bracket for vertical mounting
- Bayonet locking system with push button
- For general applications
- Attractive price/performance ratio
Especially suitable for
PLANT CONSTRUCTION
ELECTRICAL WHOLESALE TRADE
Technical data
Housing - Ø 120 mm, ABS black (RAL 9005) or grey (RAL 7035)
Lens - Polycarbonate, ribbed inside amber, red, blue or yellow
Type of mounting - horizontal, vertical or any
Cable entry - bottom: Grommet 5–10 mm
Connection technology - Terminal 2,5 mm²
Leakage current - 0,003 A (PLC-suitable)
Beacon type - LED flashing beacon
Light source - 48 LEDs
Strobe/flash frequency - 2 Hz
Duty cycle - 100 %
Service life - Light source: 100.000 h
Operating temperature - -35 °C / +60 °C
Degree of protection - IP65
Weight - 270 g
