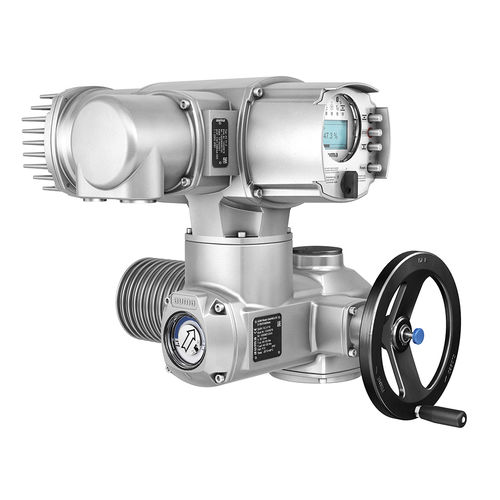

Variable-speed valve actuator SAV / SARV series
electricmulti-turnmodulating

variable-speed valve actuator
variable-speed valve actuator
variable-speed valve actuator
Add to favorites
Compare this product


Characteristics

Type
electric
Movement
multi-turn
Other characteristics
modulating, with handwheel, variable-speed
Torque

Min.: 10 Nm (7 ft.lb)

Max.: 1,000 Nm (738 ft.lb)

Description

With SAV .2 multi-turn actuators for open-close duty and SARV .2 for modulating duty paired with ACV .2 actuator controls, the proven AUMA SA/SAR range is enhanced by variable speed models. AUMA is spearheading market technology offering a wide speed control ratio of 1:10. Actuators of the SAV type range for open-close duty and positioning duty are rated for class A and B or types of duty S2 - 15 min. A special version for longer running is available for the S2 - 30 min duty. Actuators of the SARV type range are rated for class C or types of duty S4 - 25 %. Special versions for S4 - 50 % are also available. Design features SAV Torque range from 10 Nm to 1,000 Nm Output speeds from 6 to 240 rpm Limit and torque sensing o Available with 3-ph AC motors Handwheel for manual operation Design features SARV Torque range from 15 Nm to 1,000 Nm Output speeds from 15 to 350 rpm Switching frequency max. 1,500 c/h Output speeds from 6 to 240 rpm Limit and torque sensing o Available with 3-ph AC motors Handwheel for manual operation
