Electric valve actuators

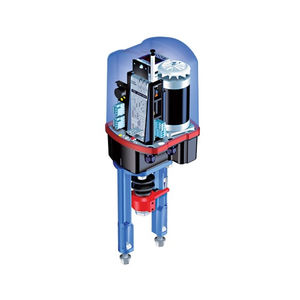

Actuator force: 500, 2,500, 2 N

Special features SAM DIGITAL READY Linear actuator with 15 mm or 30 mm rated travel 15 mm version optionally with fail-safe action (actuator stem retracts or extends) Optionally ...

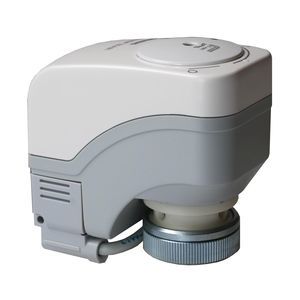

Actuator force: 700 N

Special features Linear actuator with integrated digital controller Suitable for 6 mm, 12 mm, or 15 mm rated travel Force-locking connection with 6 mm and 12 mm rated travel, form-fit connection with ...

Actuator force: 500, 280 N

Special features Fail-safe action Actuator Stem Extends or Actuator Stem Retracts Linear actuator with integrated digital controller Suitable for 6 mm, 12 mm, or 15 mm ...

Torque: 10 Nm - 3,000 Nm

... Intelligent Actuator For 60 years Rotork has used innovation for designing reliable, flexible and robust valve actuators and control systems. Continuing our ethos of evolving design, ...

Torque: 10 Nm - 450 Nm

IQS is the 1-phase version of the IQ actuator. Direct torque range from 10 Nm to 450 Nm (7 lbf.ft to 332 lbf.ft). With second stage gearboxes, multi-turn output torque up to 9,700 Nm (7,154 lbf.ft) and part-turn up ...

Torque: 11 Nm - 305 Nm

IQD actuators are direct current powered versions of IQ actuators. Direct torque range 11 Nm to 305 Nm (8 lbf.ft to 225 lbf.ft). Voltage ranges available are 24, 48 and 110 VDC. With the addition of ...

Torque: 7 Nm - 132 Nm

Torque: 4, 8, 20, 35, 50 Nm

... EBRO actuator series stands for.Pneumatic actuators, single or double acting, have been proven for decades. However, industrial process air is expensive. Energy efficiency is therefore the topic of the ...

Torque: 4, 8, 20, 35, 50 Nm

... many people know: EBRO produces its own actuators - and has been doing so for more than 40 years. For EBRO customers this means that butterfly and gate valves can always be equipped with the most suitable ...

CRG-type Electric Gear Motor Actuators are suitable for opening and closing VLQ, VLC, VLR and VDI-type Slide Valves. LSM 6-type limit switches are mandatory ...

AR-type Electric Actuators are gear motor drives suitable for opening and closing VG-type Slide Valves. AR actuators come with a splined shaft coupling ...

Actuator force: 2,300 N - 25,000 N

This electric actuator is connected to a valve that allows it to be operated at a distance by an electrical pulse. It has an extensive range of electric actuators.

Torque: 1 Nm - 20 Nm

... GT reversible gear motors are useful for transmitting rotary movements. With a torque of 1.2 to 20 Nm, the gear motors provide operating times between 3.7 to 214 seconds. The gear ...

Torque: 3 Nm - 30 Nm

... IC 40 reversible gear motors are useful for transmitting rotary movements between 0 and 90°. IC 20 can operate between 7.5 to 60 seconds and it comes with voltage-free limit switches and automatic/manual ...

Design Manual actuators for the operation of quarter-turn valves. MR range manual gearbox, irreversible worm gear or scotch-yoke kinematics. Standard operation by handwheel. Models MR 400 to 1600 can ...

Torque: 16,000 Nm

This electric actuator is designed for mounting on ball valves or butterfly valves or ball valves. Features a top flange ISO 5211. Comes with travel ...

Ham-Let electric actuators (Pneumatic), made of plastic, require 15 W power and provide a rotary angle of 90°.

This is a compact actuator for ball valves up to ½” body size used with the entire range of Ham-Let ball valves. Voltage range is 90V to 240V, 50Hz to 60Hz or 90V to 350V DC with power ...

Torque: 80 Nm - 1,200 Nm

The REA Electric Actuators have been expressly developed for applications that operate on quarter turn such as Ball, Butterfly, Plug valves, Dampers and the like. It ...

Torque: 40 Nm - 3,000 Nm

... series, condensed TORK rotary electric actuator and the T-REA 40/60 series condensed actuator with motor brake systems have a high grade and high resistance to corrosion. Both the T - ...

Torque: 80 Nm - 3,000 Nm

... 110V AC. Actuator operating times range from 12-112sn at 50/60Hz with 90-degree rotation. The induction motor is reversible, two 16A open-close switches (optional S.P.D.T) are provided, with two additional ...

Torque: 5 Nm - 150 Nm

Electrical, explosion proof quarter turn (90°) actuators series ExMax and RedMax for automation of ball valves, butterfly valves and mixing valves. - 5 Nm up to 150 ...

Actuator force: 500 N - 3,000 N

Actuator with spring return for linear valves ExMax.. + LIN Highlights: - Spring return safety function for linear valve actuation - Force 500 N up to 3.000 N - Installation in hazardous ...

Actuator force: 500 N - 10,000 N

Electrical, explosion proof linear motion actuators series ExRun and RedRun for automation of valves and other linear motion armatures. - 500 N up to 10.000 N - 5-60 mm stroke - Certified according to ...

Compact design IN BUILT Linear cylinder 2”to 6” bore Stroke up to 8” Megneto resistive feedback ON OFF or regulating application Fail safe open to fail safe close or vice versa can be done at site Speed regulator built in

Input signal 4 to 20 mA Output signal 4 to 20 mA Discrete control design Cylinder bore up to 20” Stroke up to 2 m Megneto resistive feedback

Torque: 63 Nm - 600,000 Nm

Hydraulic system with rotary quarter turn actuator 63 Nm to 600000 Nm torque Heavy Duty, High-performance, Internal tie rods, Female shaft drive Local /remote operation Discrete control design Pump pressure ...

Torque: 15 Nm - 760 Nm

Thanks to their long life batteries, modec electric portable valve actuators are able to deliver a high power for more than 30 minutes. This means they are not dependent on an energy ...

Torque: 41 Nm - 700 Nm

modec gas portable valve actuators can be used in total autonomy – the only limit being the available petrol supply. They are particularly suitable for use in isolated outdoor places. Extremely robust, ...

Characteristics Tensions, 24V, 110V, 220V, 380V. WITH: •Torque limit (fusible). •Emergency hand wheel. •4 limit switches 5° adjustable. •Grade of protection IP-65.

Characteristics •NAMUR box with Electromechanic or Inductive limit switches. •Electromechanic. •Inductive EExD.

Torque: 60 Nm

Electrical actuator. Compact and low weight due to high grade aluminium alloy for housing. Various output torques and usable for a wide range of voltage.

Torque: 150 Nm - 3,000 Nm

Electrical actuator. Compact and low weight due to high grade aluminium alloy for housing. Various output torques and usable for a wide range of voltage. (Option: ATEX)

Torque: 25 Nm - 2,400 Nm

Electrical actuator with fail-safe function, which closes or opens the valve at power failure. IP68. Regulated internal heater. Limit switches. Torque protection.

NOTOR ST and NOTOR R ST electric actuators are designed to drive “quarter-turn” industrial valves or any other applications. 1. Actuators operating ...

Torque: 20 Nm

Compact & robust electrical actuator, Type ITQ, for quarterturn movement and modulating..Body of hard anodized aluminium with a layer of red powder coating as top coating. -Removable drive bushing ...

Torque: 40 Nm

Compact & robust electrical actuator, Type ITQ, for quarterturn movement and modulating..Body of hard anodized aluminium with a layer of red powder coating as top coating. -Removable drive bushing ...

Torque: 80 Nm

Compact & robust electrical actuator, Type ITQ, for quarterturn movement and modulating..Body of hard anodized aluminium with a layer of red powder coating as top coating. -Removable drive bushing ...

Torque: 30 Nm

In general The actuator is especially suitable for the operation of ball valves and butterfly valves with 90°-rotation angle. Features robust, water-resistant body made of aluminium optical ...

Torque: 50 Nm - 2,500 Nm

In general The actuator is especially suitable for the operation of ball valves and butterfly valves with 90°-rotation angle. A waterresistant body with overload protection and a heating ...

Torque: 60 Nm - 2,500 Nm

In general The actuator is especially suitable for the operation of ball valves and butterfly valves with 90°-rotation angle. A waterresistant body with overload protection and a heating ...

Torque: 180 Nm - 1,000 Nm

The standard actuator is 90° for on or off duty and positioning of ball and butterfly valves. Different modes are S4 - 30% for on/off duty, S4 - 50% for positioning class III and S4 - 100% for positioning ...

Torque: 60 Nm - 180 Nm

GEFA Type OA electric actuator is a 90°-actuator for on/off duty and ball valves and butterfly valves positioning. It has IP67 protection. S4 30% mode ...

Torque: 12 Nm - 4,100 Nm

A new generation of modular electric valve Actuators that are cost-effective and reliable.

... new generation of electric actuators, the ELQ series. Plug in modules are used for an extensive range of control options, these enable the basic actuator specification to be easily extended ...

Valve Actuator Series MD High design flexibility The consistent modular design of the actuators provides great design freedom. Equipped with additional retrofitted modules for special ...

Actuator force: 1,000 N

MF series valve actuator The MF200Y Kieback&Peter type actuators were designed to meet the safety requirements of the new European standard DIN EN 14597. Independent After triggering ...

Torque: 25 Nm - 300 Nm

... Multivoltage actuator 24V AC/DC, 115-230VDC, or 400V tri VT: 400V tri, 230V AC Proportional control 4-20mA / 0-10V, adjustable mechanical stops (VS / VT), wheel for manual override (VS / VT). ROTATION ANGLE AND TORQUES: Electric ...

Actuator force: 5 kN - 360 kN

... handling of electric valve actuators. The TriVAX offers extensive power and torque reserves, yet has a considerably more compact design than conventional systems. Thanks ...

Torque: 75 Nm - 150 Nm

Integrated frequency converter Upgradeable functionality Valve protection High positioning accuracy Variable positioning times Modular design Minimal type variance

Torque: 81,349 Nm
Actuator force: 2,224 kN

... multi-turn electronic actuator can provide torque output up to 1700 ft. lbs. Available in a wide variety of configurations to accommodate various applications and valve ...
