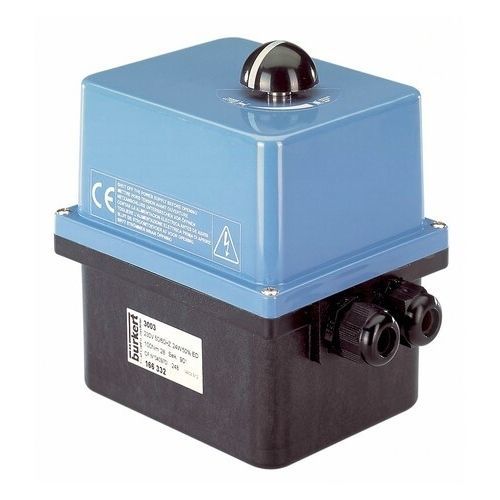

Electric valve actuator 3003
rotaryhigh-performanceadjustable

electric valve actuator
electric valve actuator
electric valve actuator
electric valve actuator
Add to favorites
Compare this product


Characteristics

Type
electric
Movement
rotary
Other characteristics
compact, adjustable, high-performance, with integrated limit switch
Torque

Min.: 20 Nm (15 ft.lb)

Max.: 100 Nm (74 ft.lb)

Ambient temperature

Min.: -10 °C (14 °F)

Max.: 55 °C (131 °F)

Rotation angle

90 °, 180 °

Description

The electrical rotary actuator type 3003 is a compact and powerful actuator system, which provides a long service life. Materials and components have been chosen for a maintenance-free operation even in aggressive environments and ensure low thermal loading on the actuator. The modular design offers many additional features to be added to the basic device such as extra limit switches, potentiometers and emergency power. With the control actuator version the input signals as well as the output signals (eg. 4-20 mA, 0-20 mA, 0-10 V) can be programmed. Heating resistors and torque limiters are standard features. The housing is made of flame resistant material classified according to UL 94 V0. Direct mounting on quarter-turn valves (ball and butterfly valves) Manual override in standard Adjustable limit switches Multi-voltage
