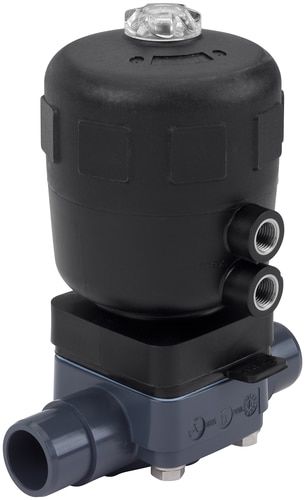

Diaphragm valve 2030 pneumatically-operatedpurgefor natural gas
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- diaphragm
- Operation
- pneumatically-operated
- Function
- purge
- Media
- for natural gas
- Body$
- flange, modular
- Material$
- plastic
- Number of channels
- 2/2-way
- Other characteristics
- with actuator, rugged, for high flow rates, universal, with connection, for aggressive media
- DN
Max.: 100 mm
(3.937 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 10 bar
(145 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: -10 °C
(14 °F)- Flow rate
Max.: 43 m³/h
(1,518.53 ft³/h)Min.: 3 m³/h
(105.94 ft³/h)
Description
Externally controlled diaphragm valve with piston actuator and diaphragm seal. As standard, actuator from PA. The flow optimised and zero dead space valve body makes high flow rates possible.
Flow optimised and zero dead space body
Hermetical separation of the medium from the actuator by a diaphragm
Universal and robust actuators with modular accessory program
Self-draining plastic valve bodies with thread, socket, or flange connection
Suitable for aggressive and corrosive media
