Globe valve 2012 pneumatically-operatedregulatingfor gas
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- globe
- Operation
- pneumatically-operated
- Function
- regulating
- Media
- for gas
- Body$
- flange, threaded, weld, modular, compact, rugged
- Material$
- stainless steel
- Number of channels
- 2/2-way
- Other characteristics
- with actuator
- DN
Max.: 100 mm
(3.937 in)Min.: 10 mm
(0.394 in)- Pressure
Max.: 25 bar
(362.6 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 230 °C
(446 °F)Min.: -10 °C
(14 °F)- Flow rate
Max.: 155 m³/h
(5,473.77 ft³/h)Min.: 5 m³/h
(176.57 ft³/h)
Description

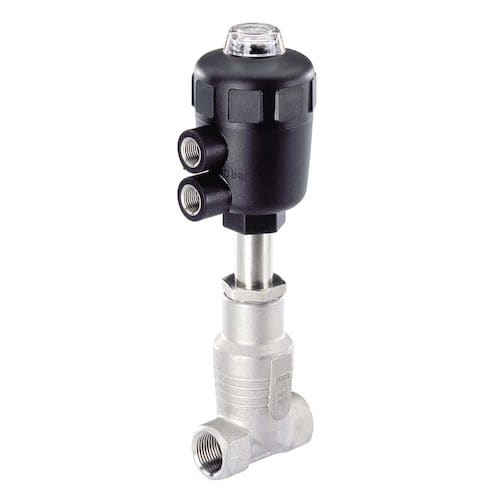

The externally piloted globe valve consists of a pneumatically operated piston actuator and a 2/2-way valve body. The actuator is made of PA or, for special operating conditions, PPS. The reliable self-adjusting packing gland provides high sealing integrity. These maintenance-free and robust valves can be retro-fitted with a comprehensive range of accessories for position indication, stroke limitation or manual override.
Long service life
Robust actuators with modular accessory program
Stainless steel housing with flange, thread and weld end connection
