Diaphragm valve 2032
manualpneumatically-operatedregulating

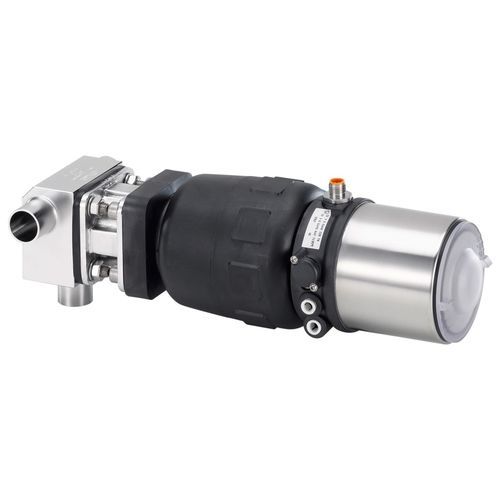

Diaphragm valve - 2032  - BÜRKERT FLUID CONTROL SYSTEMS - manual / pneumatically-operated / regulating
Diaphragm valve - 2032  - BÜRKERT FLUID CONTROL SYSTEMS - manual / pneumatically-operated / regulating
Diaphragm valve - 2032  - BÜRKERT FLUID CONTROL SYSTEMS - manual / pneumatically-operated / regulating - image - 2
Diaphragm valve - 2032  - BÜRKERT FLUID CONTROL SYSTEMS - manual / pneumatically-operated / regulating - image - 3
Diaphragm valve - 2032  - BÜRKERT FLUID CONTROL SYSTEMS - manual / pneumatically-operated / regulating - image - 4
Diaphragm valve - 2032  - BÜRKERT FLUID CONTROL SYSTEMS - manual / pneumatically-operated / regulating - image - 5
Diaphragm valve - 2032  - BÜRKERT FLUID CONTROL SYSTEMS - manual / pneumatically-operated / regulating - image - 6
Diaphragm valve - 2032  - BÜRKERT FLUID CONTROL SYSTEMS - manual / pneumatically-operated / regulating - image - 7
Diaphragm valve - 2032  - BÜRKERT FLUID CONTROL SYSTEMS - manual / pneumatically-operated / regulating - image - 8
Diaphragm valve - 2032  - BÜRKERT FLUID CONTROL SYSTEMS - manual / pneumatically-operated / regulating - image - 9
Diaphragm valve - 2032  - BÜRKERT FLUID CONTROL SYSTEMS - manual / pneumatically-operated / regulating - image - 10
Diaphragm valve - 2032  - BÜRKERT FLUID CONTROL SYSTEMS - manual / pneumatically-operated / regulating - image - 11
Diaphragm valve - 2032  - BÜRKERT FLUID CONTROL SYSTEMS - manual / pneumatically-operated / regulating - image - 12
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Type
diaphragm
Operation
manual, pneumatically-operated
Function
regulating
Media
for gas
Body$
rugged, explosion-proof
Applications
hygienic
Material$
stainless steel
Associated function
injection
Other characteristics
compact, standard, normally closed, IECEx, ATEX
DN

Min.: 8 mm
(0.315 in)

Max.: 100 mm
(3.937 in)

Pressure

Min.: 0 bar
(0 psi)

Max.: 10 bar
(145 psi)

Temperature

Min.: -10 °C
(14 °F)

Max.: 143 °C
(289 °F)

Flow rate

Min.: 1 m³/h
(35.31 ft³/h)

Max.: 235 m³/h
(8,298.95 ft³/h)

Description

The externally controlled diaphragm valve Type 2032 consists of a pneumatically operated piston actuator, a diaphragm and a T-valve body. The proven and robust actuator with a plastic housing ensures use in hygienic or aggressive ambient conditions. The flow-efficient valve bodies with little dead space enable high flow rates and a wide range of possible uses. The valve body and the diaphragm are available in all common materials and variants. The actuator has a compact, autoclavable design (PPS variant). The integration of the automation units 8690/8697 is possible in all configuration levels (can be retrofitted). An explosion-proof ATEX / IECEx device variant is available. The add-on body is optionally available in plastic or stainless steel. The actuator is equipped with an integrated, optical position indicator as standard, optionally a min./max. stroke limiter can be installed. Valve body and diaphragm are available in various materials and variants Product wetted surfaces in Ra ≤ 0.38 µm...1.6 µm (optionally electropolished) Available in all common connection sizes and variants
