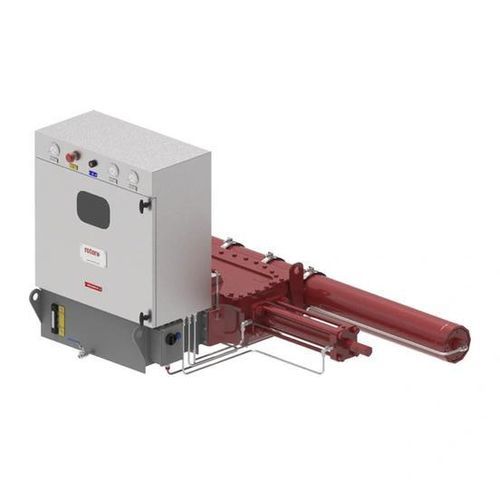

Hydraulic valve actuator M-EH

electromechanicalelectro-hydraulicmechanical

Overview
M-EH modular electro-hydraulic solutions provide valve automation for on/off duty with configurable mechanical and control modules suitable for low-power infrastructures.

Basic (on/off)

• Designed for simple on/off operation without partial stroke test (PST) or advanced diagnostics; self-contained relay-based system with low power consumption and external input signal handling.
• Remote control via hardwired signal (electro-mechanical logic)
• Local indication by pressure and position gauges: valve position, actuator and accumulator pressure, oil level, temperature
• Minimum flowrate 30 l/min (adjustable), extendable to customer requirements
• Optional accumulator for pressure backup
• Suitable for low-power infrastructures (including solar) for operation and standby

Advanced (on/off)

• Intelligent PLC/EHPC210 controller: programmable for customised logic and interlocks
• Local control, non-intrusive configuration and troubleshooting via user-friendly digital HMI
• Optional network protocol support: Modbus RTU, Modbus TCP/IP, PROFIBUS, PROFINET
• Local indication via HMI: position, actuator and accumulator pressure, oil level, temperature
• Modular mechanical architecture and flexible controller functionality — from basic on/off to multiple voting (1oo1, 1oo2, 2oo2) for SIL-rated ESD
• Partial stroke test (PST), full stroke test, solenoid valve test, accumulator monitoring and line-break detection for detailed diagnostics over modern network protocols
• Safety Integrity Level up to SIL 3
• Optional lockable cabinet to prevent unauthorised operation

Characteristics / technical specifications

• Series: M-EH modular electro-hydraulic
• Minimum flowrate: 30 l/min (adjustable)
• Optional accumulator for pressure backup
• Controller: PLC/EHPC210 (programmable)
• Supported network protocols (optional): Modbus RTU, Modbus TCP/IP, PROFIBUS, PROFINET
• Local indication via HMI or gauges: position, actuator and accumulator pressure, oil level, temperature
• Modular mechanical architecture; supports multiple voting configurations (1oo1, 1oo2, 2oo2) for SIL-rated ESD
• Supported tests: partial stroke test (PST), full stroke test, solenoid valve test, accumulator monitoring, line-break detection
• Safety Integrity Level: up to SIL 3
• Suitable for low-power infrastructures (including solar) for operation and standby
• Optional lockable cabinet to prevent unauthorised operation
