Valves with handwheel

Temperature: -10 °C - 400 °C
Pressure: 40 bar
DN: 15 mm - 250 mm

Flow valve with external screw, maintenance-free, series PN 40, built with body and stand in carbon steel GP 240 GH + N, stainless steel interior, bellows seal, complete with position indicator, locking screws, grease ...

Temperature: -10 °C - 400 °C
Pressure: 40 bar
DN: 15 mm - 250 mm

... screw streamlined flow valve series PN 40. Maintenance free. GX5 CrNiMo 19-11-2 stainless steel body and yoke. Stainless steel stem, bellows and sealing seats. Graphite + stainless steel gaskets. Carbon steel handwheel. ...

Temperature: -10 °C - 300 °C
Pressure: 16 bar
DN: 15 mm - 200 mm

Inside screw streamlined flow valve series PN 16. Maintenance free. EN-GJL-250 cast iron body and yoke. Stainless steel stem, bellows and sealing seats. Graphite + stainless steel gaskets. Carbon steel handwheel. ...

Temperature: 0 °C - 120 °C
Pressure: 700,000, 1,035,000 Pa
DN: 50 mm - 600 mm

... knife gate valve has a rugged, durable construction and a uni-body design to ensure long life and reliability. The two-piece rubber sleeve system is flexible and pressure assisted. The sleeves are easy to replace and ...

Pressure: 5,100,000 Pa
DN: 80 mm - 900 mm

... manufacturing ensues that our Isogate knife gate valve range remains at the forefront of valve design. Key feautes/benefits Field replaceable thick elastomer sleeves are easily replaced without ...

Pressure: 0 Pa - 5,100,000 Pa
DN: 2 in - 54 in

The Delta Industrial™ 30S and 30L series valves are a fully rated ASME Class 300 (PN50) guided shear gate designed for severe duty applications. Overview The Delta Industrial™ 30S and 30L series is identical to ...

Temperature: -40 °C - 200 °C
Pressure: 16 bar
DN: 20 mm - 600 mm

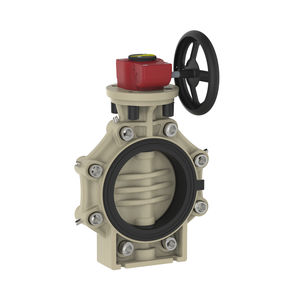

Thanks to their design and material diversity, centrally mounted, resilient seated shut-off and control valves are almost universally usable. Whether the medium is water, powder or gas - with a broad range of materials, ...

Temperature: -10 °C - 90 °C
Pressure: 6 bar
DN: 50 mm - 300 mm

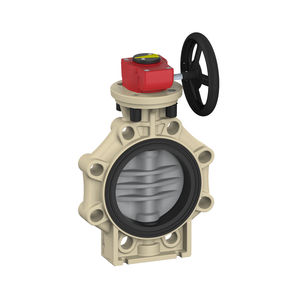

Thanks to their design and material diversity, centrally mounted, resilient seated shut-off and control valves are almost universally usable. Whether the medium is water, powder or gas - with a broad range of materials, ...

Temperature: -40 °C - 200 °C
Pressure: 25 bar
DN: 50 mm - 1,200 mm

Soft seated double flanged butterfly valve designed for high pressure applications. The combination of vulcanized liner and thrugoing shaft allows pressure loads up to 25 bar. FEATURES- Butterfly valve ...

DN: 25 mm - 1,000 mm

Soft-seated butterfly valve, manually operated DV550.HZD The soft seated butterfly valve OnC DiscValve 550 can be provided with either manual hand lever or gear box. Manual hand lever for sizes DN25–DN300 ...

Pressure: 16 bar - 99 bar
DN: 15 mm - 250 mm

This device is excellent for stop valves of the on-off type. It is an environmentally friendly mechanism, useful in maintaining plant safety. This device features a leak-proof, bellow-sealed design, which eliminates emissions. ...

... two isolation valves and a bleed port in one compact assembly making it easy to use and commission, without pipework modifications, into the space left by an existing single isolation valve. - Double ...

Pressure: 15,000 psi
DN: 2 in

... light-weight plug valve is engineered to meet HSE lifting requirements in the North Sea. Overview Engineered with safety in mind, the SPM® 2-inch light-weight plug valve meets HSE lifting requirements ...

Temperature: -400 °F - 1,500 °F
DN: 3 in - 96 in

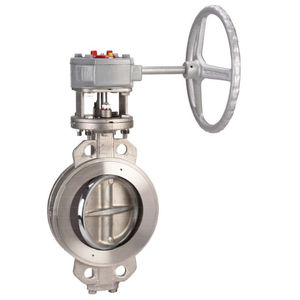

... Overview Tricentric® Metal Seated Valves perform favourably when compared to conventional resilient seated and high performance butterfly valves over all services ranges. Tricentric® Triple Offset ...

Temperature: 30 °C - 220 °C
Pressure: 100 bar
DN: 50 mm - 1,600 mm

The Batley Valve® BV 22000 Hyperseal double offset is a versatile butterfly valve available in varied sizes and ANSI classes depending on the application. Overview Our standard Batley Valve® ...

Temperature: -50 °C - 160 °C
Pressure: 100 bar
DN: 25 mm - 1,000 mm

The Flowrox manual valves is designed with an enclosed body. The valves are operated with handwheel actuator. The enclosed body ensures reliable and safe operation. It also provides protection ...

Temperature: -50 °C - 70 °C
Pressure: 10 bar
DN: 50 mm - 150 mm

The PVEG represents a robust and compact, light-weight pinch valve manufactured with highest quality standards and employed when applications involve aggressive slurries, abrasion, corrosion and pressure resistance ...

Temperature: -10 °C - 120 °C
Pressure: 0 bar - 16 bar
DN: 15 mm - 200 mm

KSB BOA-Compact Soft-seated shut-off globe valve comes with a flanged end and a short face-to-face length in accordance with EN 558/14. Made of cast iron, the bonnetless BOA globe valve has been ...

Temperature: -10 °C - 350 °C
Pressure: 25 bar
DN: 15 mm - 350 mm

... globe valve of bellows-type that also has a flanged end. with additional throttling and shut-off valve plug. This globe valve has a color coded position indicator which is standard and ...

Temperature: -10 °C - 120 °C
Pressure: 16 bar
DN: 20 mm - 200 mm

The DN 200 is a wafer-type globe valve conforming to EN 558/94. It is used face-to-face, has slanted seat and is bonnetless. It has large flange alignment holes used in centering, has downstream dismantling and dead-end ...

Temperature: -10 °C - 350 °C
Pressure: 16 bar
DN: 15 mm - 350 mm

The ARI-FABA-Plus from Armaturen in its stainless steel version is designed for application in chemical industries, recycling facilities, process water installation projects, hospital technology, and with aggressive media. It can handle ...

Temperature: -60 °C - 450 °C
DN: 0.5 in - 10 in

eClass-No.: 37010201 Application: Industry, powerstations, flue gas purification plant, processing technology, gas supply, vapour facilities, recycling facilities, vacuum facilities, hot water, heating technology, district heating, thermal ...

Temperature: -60 °C - 450 °C
Pressure: 40 bar
DN: 15 mm - 400 mm

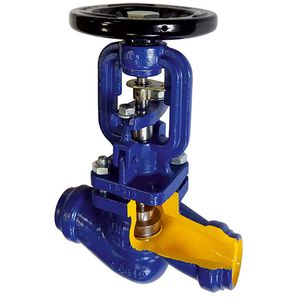

The Armaturen ARI-FABA Supra stop valve with bellows seal offers double wall bellows seals that are welded to the bonnet and are good for 10.000 load cycles. They can be used in flue gas purification plants, gas supply, ...

The expanding gate valve can be trimmed to meet most specifications that require handling a wide range of products and services. The extensions and adaptation for actuation are options regularly requested and provided. ...

Temperature: -40 °C

... housing. Our expanding plug valve has a relief system port located on the upper section of the valve body, eliminating any need to disassemble the relief system to remove the valve bonnet, ...

Our Trunnion Ball Valve has a take-apart three-piece forged body design and trims available to meet the demanding requirements of the pipeline and process industries. Available in sizes from 2 through 36 in. and classes ...

Pressure: 10 bar
DN: 65 mm - 200 mm

Only sleeve gasket and disc in touch with medium Double sealed shaft Integrated bracket for fix point mounting Variable locking positions 90° ±5° adjustable Fixed position of the disc due to self-locking gear mechanism Smooth running ...

Pressure: 10 bar
DN: 65 mm - 200 mm

Only sleeve gasket and disc in touch with medium Double sealed shaft Integrated bracket for fix point mounting Variable locking positions 90° ±5° adjustable Fixed position of the disc due to self-locking gear mechanism Smooth running ...

Pressure: 10 bar
DN: 65 mm - 200 mm

Only sleeve gasket and disc in touch with medium Double sealed shaft Integrated bracket for fix point mounting Variable locking positions 90° ±5° adjustable Fixed position of the disc due to self-locking gear mechanism Smooth running ...

Temperature: 0 °C - 400 °C
Pressure: 0 bar - 250 bar
DN: 15 mm - 50 mm

... moved by means of a spindle away from or toward the valve seat. The rate of flow change is determined by how much the valve spindle is turned as well as the pitch of the valve spindle thread.

Temperature: 0 °C - 120 °C
Pressure: 0 bar - 250 bar
DN: 15 mm - 50 mm

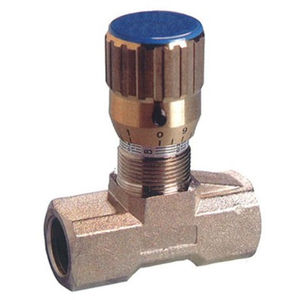

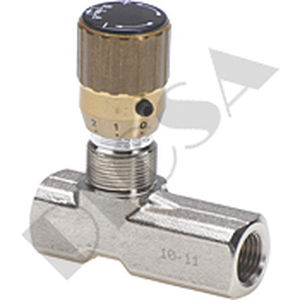

Stainless steel needle valves are used to vary the flow cross section, thus regulating the flow volume. The flow is regulated by a cone-shaped valve that is moved by means of a spindle away from or toward ...

Temperature: 0 °C - 180 °C
Pressure: 0 bar - 16 bar
DN: 15 mm - 50 mm

Connection: G ⅜ ... G 3, weld-on ends DN15 ... DN50 Material: brass, stainless steel pmax: PN16 tmax: 180°C

Temperature: -10 °C - 120 °C
Pressure: 10, 6 bar
DN: 50 mm - 300 mm

KNIFE GATE VALVE WITH STAINLESS STEEL BODY, STAINLESS STEEL GATE AND EPDM SEAT (Model : 58481)

Temperature: -20 °C - 120 °C
Pressure: 10 bar
DN: 15 mm - 65 mm

... isolated from the fluid and external environment • Modularity of the range: only 2 handwheel and 4 diaphragm and bonnet sizes for 7 different valve sizes • Non-rising handwheel that ...

Pressure: 7 bar
DN: 350 mm - 400 mm

The FK is a butterfly valve for shutting off or regulating flow, with structural characteristics that make it ideal for industrial applications requiring high performance and long-term reliability. This valve ...

Temperature: -20 °C - 120 °C
Pressure: 10, 6 bar
DN: 80 mm - 100 mm

The VM is particularly suitable for shutting off and regulating abrasive or dirty fluids. The handwheel control and diaphragm seal provide precise and effective control, while reducing the risk of water hammer to a ...

Temperature: -30 °C - 130 °C
Pressure: 10 bar

Tork's T-KV .W1120 is an industrial application valve which is recommended for applications that include ship building, hot and cold water, HVAC application, textile units, base and salty conditions, acids-alcali and ...

Pressure: 16 bar
DN: 0.5 in - 12 in

Type: BT-FGA (Gate valve 150L/10K) Size: 1/2" ~ 12" ASTM-A351-CF8M, ASTM-A351-CF8, ASTM-A216-WCB Rating ANSI 150L/ JIS 10K, Face to face ANSI B16.10/ JIS B2002, End flange dimension ANSI B16.5/ JIS B2239, Design ANSI ...

Pressure: 200 psi
DN: 0.5 in - 3 in

Type: BT-GA (Gate valve 200psi) Size: 1/2" ~ 3" ASTM-A351-CF8M Full port, Rating 200psi, Threaded end, Screwed bonnet, Wedge disc integral seat, Non-rising stem, handwheel operation

Pressure: 200 psi
DN: 0.25 in - 2 in

Type: BT-GL (Globe valve 200psi) Size: 1/4" ~ 2" ASTM-A351-CF8M Full port, Rating 200psi, Threaded end, Screwed bonnet, Wedge disc integral seat, Non-rising stem, handwheel operation

Temperature: -40 °C - 200 °C
Pressure: 10 bar
DN: 50 mm - 1,000 mm

Features •Double action, maintenance-free and self-adjusting top and bottom stem sealing - wide variety of discs / body combinations possible •Durable due to optimum material combination PTFE lining and PFA disc •Maximum reliability ...

Temperature: -60 °C - 180 °C
Pressure: 16 bar
DN: 15 mm - 100 mm

Features •High reliability due to thick-walled PFA lining: universal resistance and maximum permeation resistance •Safety also at high pressures and temperatures due to heavy-duty bellows •Easy to maintain: seat and plug individually ...

Temperature: -10 °C - 110 °C
Pressure: 16 bar
DN: 50 mm - 300 mm

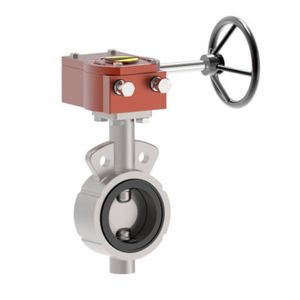

The stainless steel butterfly valve engineered by Sferaco features an aluminum IP 65 Gearbox. This gearbox has a position indicator and locking device in steel chain for DN 250 and DN 300. The wafer type valve ...

Temperature: -29 °C - 210 °C
Pressure: 25 bar
DN: 50 mm - 400 mm

This wafer type device offers 100% tightness with ISO PN25 flanges. The double eccentric device is bidirectional with a preferential flow direction indicated by an arrow. It complies with fire safety according to ISO 10497:2010 regulations ...

Temperature: -29 °C - 210 °C
Pressure: 20 bar
DN: 50 mm - 350 mm

The DN50-500 1110 Series features a stainless steel CF8M disc, with a primer painting EP-02 epoxy red oxide primer RAL2012 and implemented with an EP-04 epoxy finish enamel grey RAL 7045 finishing. The carbon steel type (ref. 1115) is ...

Temperature: -10 °C - 100 °C
Pressure: 10 bar
DN: 10, 15, 6, 8, 4 mm

The GEMÜ 601, GEMÜ 612 and GEMÜ 673 2/2-way diaphragm valves have a temperature resistant plastic handwheel and are manually operated. The GEMÜ 602 valve has a stainless steel handwheel ...

Temperature: -10 °C - 100 °C
Pressure: 10 bar
DN: 10 mm - 100 mm

... diaphragm valves have a stainless steel operator housing and are manually operated. The valve is available in two versions. GEMÜ 653 has a handwheel in high temperature and chemically ...

Temperature: -10 °C - 180 °C

... GEMÜ 507 2/2-way angle seat globe valve has an ergonomically designed plastic handwheel and is manually operated. The valve spindle is sealed by a self-adjusting gland packing providing ...

The rossignol metering valve will be fitted directly to the cylinder valve. Due to the slim conus of the metering spindle the rossignol valve guarantees precise metering. As an option ...

Temperature: -20 °C - 70 °C
Pressure: 0 bar - 300 bar
DN: 4 mm

The diaphragm shut-off valve HP 550 is laid out for the use in pure gas supply systems. The diaphragm shut-off valve has 3 inlets and one outlet. Threaded holes on the reverse side connect to a bracket ...

Temperature: -20 °C - 70 °C
Pressure: 0 bar - 300 bar
DN: 4 mm

The diaphragm shut-off valve HP 551 is laid out for the use in pure gas supply systems. The diaphragm shut-off valve has an inlet and an outlet. Threaded holes on the reverse side connect to a bracket ...

Temperature: 0 °C - 900 °C
DN: 2 in - 72 in

These Control Valves have less resistance to flow path and are most suitable for handling higher flow rates. These valves are most economical compared to other valve types and can be ...

Temperature: 0 °C - 700 °C
DN: 2 in - 72 in

These Control Valves have less resistance to flow path and are most suitable for handling higher flow rates. These valves are most economical compared to other valve types and can be ...

Temperature: 0 °C - 70 °C
DN: 3 in - 120 in

These Control Valves have less resistance to flow path and are most suitable for handling higher flow rates. These valves are most economical compared to other valve types and can be ...

Pressure: 10 bar - 40 bar
DN: 80 mm - 600 mm

... delivers zero leakage. By using this design, the former two valve system with a spool piece becomes obsolete. This fact is not only important for in­stallation since you have to install only one valve ...

Temperature: -46 °C - 400 °C
Pressure: 10 bar - 100 bar
DN: 6 in - 10 in

Metal seated valve with a bound ball suitable for high temperatures. APT3 model is a trunnion 3 pieces ball valve characterized by three pieces Split Body construction. Like all other Penta valves, ...

Temperature: -50 °C - 720 °C
Pressure: 10 bar - 420 bar
DN: 1 in - 24 in

... unique technical solutions in the market. Like all PENTA products, SAT valves are equipped with metallic seats in PENTAFITE to allow the manufacturing of metal seated ball valves with absolutely ZERO ...

Temperature: 300 °C
Pressure: 10, 16 bar
DN: 25 mm - 150 mm

Characteristics •Special for bottom outflow tanks. •The rising opening system breaks the sediment or crystallized layer on the bottom of the tank. •Mechanized in high alloy stainless steel. Specifications •Quality: ASTM A.351 Gr. ...

Temperature: -10 °C - 80 °C
Pressure: 40, 100 bar
DN: 50 mm - 500 mm

... of the proven KÜHME shut-off valves, the gate valve type PSA-DELI SAL is used in gas measuring and gas distribution plants, as well as in gas and oil pipelines, where safe shut-off of the gases is required. ...

Temperature: -10 °C - 70 °C
Pressure: 25, 10, 16 bar
DN: 50 mm - 400 mm

... -off valves, the gate valves type PSA-DELI GAL is used in gas measuring and gas distribution plants, as well as in gas and oil pipelines, where safe shut-off of the gases is required. The gate valve ...

Temperature: 300 °C
Pressure: 0.5 bar
DN: 150 mm - 800 mm

... Guidelines (TA-Luft) for full tightness towards the exterior - Very short switching times compared to simple shut-off valves Function When in its closed position, the flap plate is pressed onto the flap seat ...
