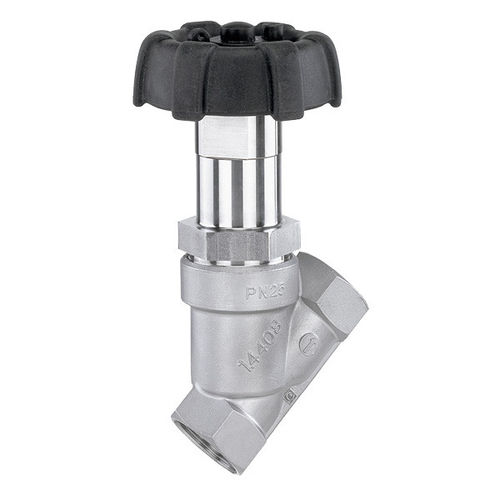

Angle seat valve 507globewith handwheelshut-off
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- with handwheel
- Function
- for control, shut-off
- Body
- flange, threaded, angle seat, Y
- Applications
- for vacuum
- Material
- stainless steel, plastic, PTFE
- Number of channels
- 2/2-way
- Associated function
- service
- Other characteristics
- ISO, DIN, ANSI, high-flow, ATEX
- DN
Min.: 6 mm
(0.236 in)Max.: 80 mm
(3.15 in)- Pressure
Min.: 0 bar
(0 psi)Max.: 25 bar
(362.6 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 60 °C
(140 °F)
Description
Universal angle seat globe valve with plastic handwheel
The 2/2-way angle seat globe valve GEMÜ 507 has an ergonomically designed plastic handwheel and is manually operated. The valve spindle is sealed by a self-adjusting gland packing providing low-maintenance and reliable valve spindle sealing even after a long service life. A wiper ring fitted in front of the gland packing also protects the seal against contamination and damage.
The 2/2-way angle seat globe valve GEMÜ 507 has an ergonomically designed plastic handwheel and is manually operated. The valve spindle is sealed by a self-adjusting gland packing providing low-maintenance and reliable valve spindle sealing even after a long service life. A wiper ring fitted in front of the gland packing also protects the seal against contamination and damage.
- High flow rates due to angle seat design
- Handwheel lock for spindle fixation to set a constant flow rate
- Available as shut-off or control valve
- Suitable for vacuum up to 20 mbar (a)
