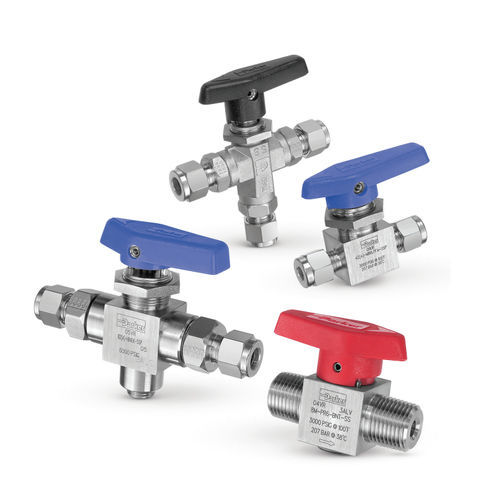

Ball valve MB series
leverwith handwheelisolation

ball valve
ball valve
ball valve
ball valve
ball valve
ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
lever, with handwheel
Function
isolation, blocking
Media
for industrial water, for oil, for chemical products, for fuel, for liquefied petroleum gas
Body
threaded, stainless steel
Applications
for industrial applications, for the chemical industry, industrial, instrumentation
Number of channels
2-way
Other characteristics
compact
Temperature

Min.: -54 °C (-65 °F)

Max.: 232 °C (450 °F)

Pressure

Min.: 0 psi

Max.: 3,000 psi

DN

Min.: 0.063 in

Max.: 0.118 in (0.118 in)

Flow rate

Min.: 1 m³/h (35 ft³/h)

Max.: 5 m³/h (177 ft³/h)

Description

Parker's MB Series ball valves, with barstock body and compact design, offer positive shut off or directional control of fluids. These ball valves work in a variety of pressure and temperature applications.up to 3,000 PSI. Product Overview Parker's MB Series ball valves, with their barstock, compact design, offer positive shut off or directional control of fluids in process, power and instrumentation applications. The unique one piece seat/packing design insures excellent sealing characteristics while accommodating a superior temperature range (-65⁰F to 300⁰F), up to 3000 PSIG and long cycle life. These valves are available in two-way and three-way configurations, brass and stainless steel construction, with a wide variety of port connections. Also, all ports are suitable as inlets to full operating pressure of the valve. Markets: • Oil and Gas • Research • Chemical • Microelectronics Features/Benefits: • One piece seat/packing design • Broad temperature range • Coated metal inserts • One piece stem/ball • Wide variety of US Customary and SI ports • Panel mountable to 1/4"" thickness • Bi-directional flow • Handle indicates direction of flow • Full operating pressure at any port • Positive handle stops • Color coded handles • 100% factory tested • Vent option • Manual, electric or pneumatic actuation • Leak-tight center-off position on three-way valves
