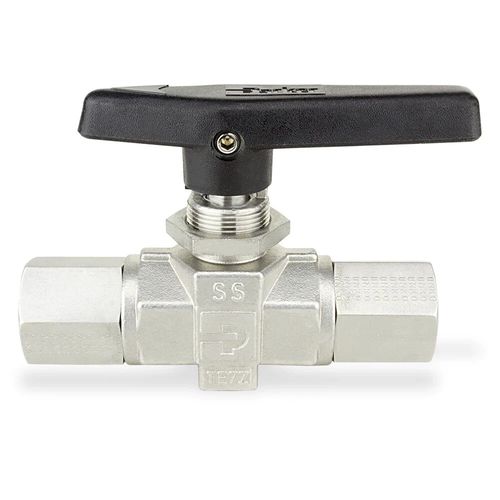

Floating ball valve B series
leverisolationblocking

floating ball valve
floating ball valve
floating ball valve
floating ball valve
floating ball valve
floating ball valve
floating ball valve
floating ball valve
floating ball valve
floating ball valve
Add to favorites
Compare this product


Characteristics

Type
floating ball
Operation
lever
Function
isolation, blocking, selector
Media
for industrial water, for oil, for chemical products, for fuel, for liquefied petroleum gas
Body
threaded, stainless steel, brass
Applications
for industrial applications, for the chemical industry, industrial, instrumentation
Number of channels
2-way
Other characteristics
standard, quick-closing, fast-opening
Temperature

Max.: 232 °C (450 °F)

Min.: -54 °C (-65 °F)

Pressure

Max.: 6,000 psi

Min.: 0 psi

DN

Max.: 0.118 in (0.118 in)

Min.: 0.063 in

Flow rate

Max.: 5 m³/h (177 ft³/h)

Min.: 1 m³/h (35 ft³/h)

Description

Parker's B Series ball valves, with a "free floating " ball design, offer superior performance in a variety of pressure and temperature applications in process, and instrumentation applications. Parker's B Series Ball Valves are available manually, pneumatically, and electrically actuated. They provide quick on-off control of fluids utilized in process and instrumentation applications. A broad selection of valve body, seat, and seal materials provide a wide range of pressures (up to 6,000 PSI) and temperatures (up to 450F/232C) at which the valve may be used. Markets: • Chemical Plants • Refineries • Power Plants • Petrochemical Plants Features/Benefits: • Free floating ball design provides seat wear compensation. • Available in 316 Stainless Steel and Brass. Monel® Alloy 400 and Hastelloy® C-276 construction available upon request. • Micro-finished ball provides a positive seal. • Straight through flow path for minimum pressure drop. • Wide variety of US Customary and SI ports. • 90° actuation. • Panel mountable. • Adjustable PTFE stem seal can be maintained in-line. • Handle indicates flow direction. • Low operating torques. • Positive handle stops. • Color coded handles. • Optional pneumatic and electric actuation. • Optional live-loaded PTFE stem seals. • Optional non-adjustable O-ring stem seals. • Optional upstream and downstream drain models. • Optional stainless steel and extended handles. Applications: • Flow Diversion • Flow Selection • Quick Fill Systems • Process Mixing Systems • Instrument Panels • Remote Shut Off (with Actuation)
