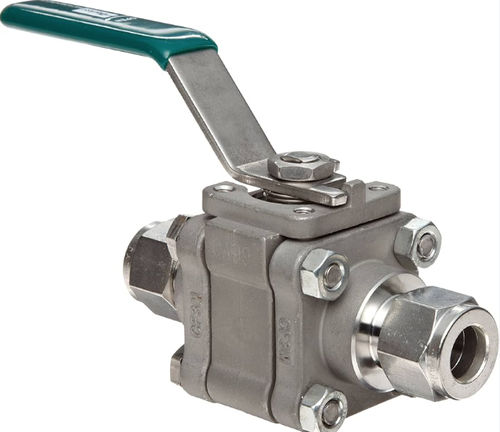

Ball valve SWB series
leverwith handwheelisolation

ball valve
ball valve
ball valve
ball valve
ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
lever, with handwheel
Function
isolation, blocking
Media
for industrial water, for oil, for chemical products, for fuel, for liquefied petroleum gas
Body
threaded, stainless steel
Applications
for industrial applications, for the chemical industry, industrial, instrumentation
Number of channels
2-way
Other characteristics
standard
Temperature

Min.: -54 °C (-65 °F)

Max.: 232 °C (450 °F)

Pressure

Min.: 0 psi

Max.: 2,500 psi

DN

Min.: 0.063 µm

Max.: 3,000 µm (0.118 in)

Flow rate

Min.: 1 l/s (0 us gal/s)

Max.: 5 l/s (1 us gal/s)

Description

Parker's SWB Series Ball Valves are a swing-out design that can handle the pressure and piping loads in various instrumentation and process applications up to 2,500 PSI (172 BAR). Product Overview Parker’s SWB Series, Swing - Out Ball Valves are a three piece design. These instrumentation ball valves are durable valves that can handle various low pressure (2,500 PSI) pressure tubing and piping loads. The ball valve’s center body section can swing out provide quick and easy valve seat, seals and the ball replacement. All of this repair capability is without having to remove the valve from the instrumentation tubing or piping system. Markets: • Pulp and Paper • Chemical • Petrochemical • Power • General Industry Features/Benefits: • Low internal volume • Free floating ball design allows for seat wear compensation • Self-compensating stem seal • Spring-loaded seats • Blow out resistant stem • Fully enclosed body bolting • Four bolt construction • ISO-type actuator mounting design • Pneumatic and electric actuation options • 100% factory tested Applications: • Process Lines • Lubrication Systems • Wash Down Systems • Steam Lines
