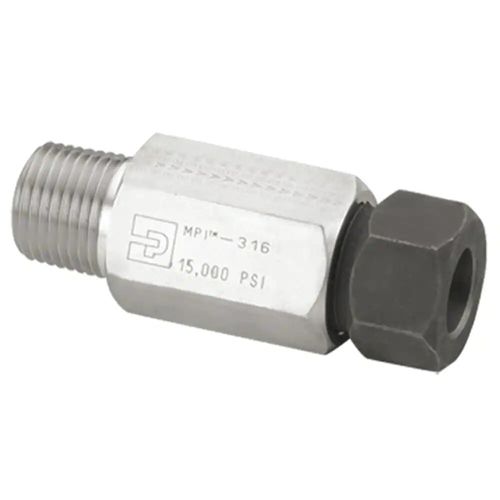

Compression fitting MPI™ series
hydraulicringelbow

compression fitting
compression fitting
compression fitting
compression fitting
compression fitting
compression fitting
compression fitting
compression fitting
compression fitting
compression fitting
compression fitting
compression fitting
compression fitting
compression fitting
compression fitting
compression fitting
Add to favorites
Compare this product


Characteristics

Applications
hydraulic
Attachment
ring, compression
Configuration
elbow, T, cross
Material
stainless steel
Gender
male, female, male-female, female-female, male-male
Other characteristics
union, corrosion-resistant
Diameter

Min.: 0.25 in

Max.: 0.75 in

Operating pressure

Min.: 0 bar (0 psi)

Max.: 1,034.21 bar

Description

Parker's MPI™ Series is an inverted two ferrule design engineered and manufactured to provide secure, tight, and leak resistant connections for small bore instrumentation applications up to 15,000 PSI. Product Overview Parker MPI™ Fittings are an inverted two ferrule, compression design. They are engineered and manufactured to provide secure, tight, and leak-resistant connections throughout industry, including off-shore oil and gas exploration platforms, research labs, and other facilities that require operating pressures in the range of 6,000 to 15,000 psi. MPI™ Fittings are ideally suited to handle liquids, gases, or chemicals and can be used on a wide variety of tubing materials including cold drawn – 1/8 hard (unannealed) stainless steel tubing, annealed 2507 seamless tubing or instrument grade thick-walled annealed stainless steel. Every Parker MPI™ Fitting is supplied complete and ready to install. Markets: • Offshore • Oil and Gas • Chemical • Petrochemical • Power • Research Features/Benefits: • Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube. • Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube. • Longer thread area for improved resistance to pressure and load on the ferrules. • Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes. • Long tube-support area improves resistance to vibration and line loads. Applications: • Offshore Process Panels • Chemical Injection • Well Head Control Panels • High Pressure Tanks
