Diaphragm valve 601
with handwheelthreadedtank bottom

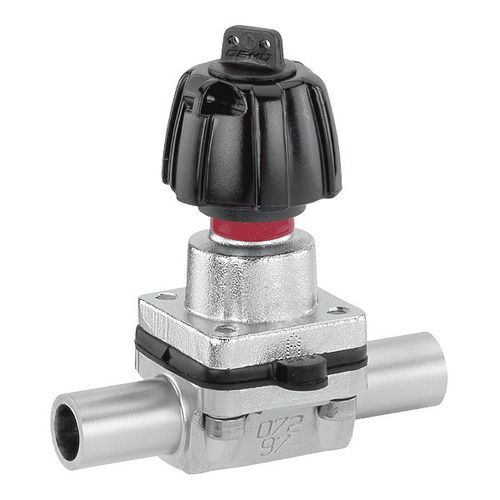

Diaphragm valve - 601 - GEMÜ Gebrüder Müller Apparatebau GmbH & Co. KG - with handwheel / threaded / tank bottom
Diaphragm valve - 601 - GEMÜ Gebrüder Müller Apparatebau GmbH & Co. KG - with handwheel / threaded / tank bottom
Diaphragm valve - 601 - GEMÜ Gebrüder Müller Apparatebau GmbH & Co. KG - with handwheel / threaded / tank bottom - image - 2
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Type
diaphragm
Operation
with handwheel
Body$
threaded
Applications
tank bottom
Material$
plastic, EPDM, forged steel, stainless steel
Number of channels
2/2-way
Associated function
service
Other characteristics
standard
DN

4 mm, 6 mm, 8 mm, 10 mm, 15 mm
(0.157 in, 0.236 in, 0.315 in, 0.394 in, 0.591 in)

Pressure

Max.: 10 bar
(145 psi)

Min.: 0 bar
(0 psi)

Temperature

Max.: 100 °C
(212 °F)

Min.: -10 °C
(14 °F)

Description

Diaphragm valve - 601 The GEMÜ 601 2/2-way diaphragm valves have a temperature resistant plastic handwheel and are manually operated. The GEMÜ 602 valve has a stainless steel handwheel and is manually operated. Bonnet and internals are made all of stainless steel. A seal adjuster to increase service life of the diaphragm and an integral optical position indicator are included as standard. -Hermetic separation between medium and operator -Optional flow direction and installation position -Long service life of the diaphragm due to patented seal adjuster (US-Pat. 5 377 956) -Valve body also available in multi-port designs (M-block and T-body) or as tank bottom valve body Body configurations: Connection types: Clamp | Spigot | Threaded connection Connection standards: Body materials: 1.4408, investment casting material | 1.4435, investment casting material | 1.4435/316L, forged body material | 1.4539/904L, forged and block material Diaphragm materials: EPDM | FKM | PTFE Conformities*: 3A | CRN | EAC | FDA | Oxygen | Regulation (EC) No. 1935/2004 | TA Luft (German Clean Air Act) | USP
