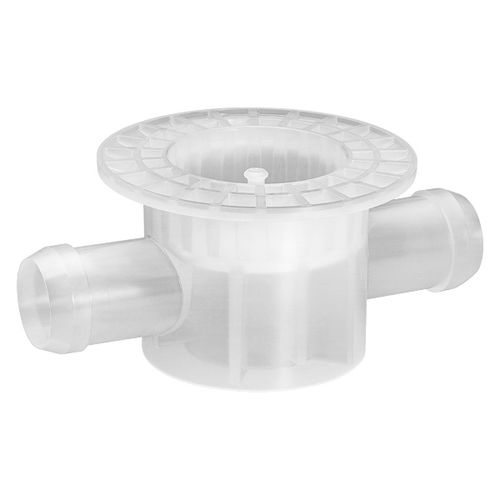

Diaphragm valve SUB
pneumaticweldedplastic

diaphragm valve
diaphragm valve
Add to favorites
Compare this product


Characteristics

Type
diaphragm
Operation
pneumatic
Body
welded, plastic, PP, TPE
Applications
chemical, for the pharmaceutical industry
Other characteristics
ISO, corrosion-resistant, single use
DN

Max.: 25 mm
(0.984 in)

Min.: 8 mm
(0.315 in)

Pressure

Max.: 4.9 bar
(71.1 psi)

Min.: 0 bar
(0 psi)

Temperature

Max.: 40 °C
(104 °F)

Min.: 0 °C
(32 °F)

Description

The GEMÜ SUB valve body of the GEMÜ SUMONDO single-use valve has an internally welded diaphragm. The single-use valve body is fastened via a clamp to the GEMÜ SUPM pneumatic actuator made from stainless steel or to the GEMÜ SUHK plastic manual operator. The valve body and the actuator are locked with a defined opening and closing procedure. After a single use, the valve body and its diaphragm are removed from the actuator and disposed of. The actuator remains in the system and can be used multiple times. Impact resistant, corrosion resistant Mechanically stable and gamma-sterilizable body material Certificate of Conformity for purity, safety and physical and chemical tests Validation Guide on request The valve body meets the purity requirements of the pharmaceutical industry (USP 85, 788, 790) Manufactured in ISO class 8 clean room Connection types *: Clamp | Hose barb Body materials: PP-R, natural Diaphragm materials: TPE Conformities: EAC | USP
