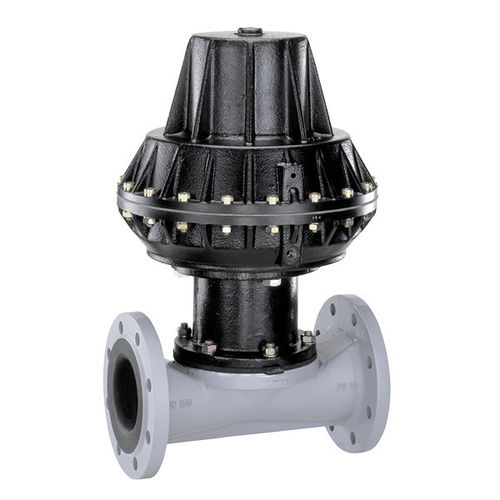

Control valve 656diaphragmpneumaticdouble-flange
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- pneumatic
- Function
- for control
- Body
- double-flange
- Material
- EPDM, NBR
- Number of channels
- 2/2-way
- Other characteristics
- ANSI, double-acting, high-flow
- DN
Min.: 25 mm
(0.984 in)Max.: 250 mm
(9.843 in)- Pressure
Min.: 0 bar
(0 psi)Max.: 7 bar
(101.5 psi)- Temperature
Min.: 0 °C
(32 °F)Max.: 60 °C
(140 °F)
Description
Deep-seated diaphragm valve with metal actuator
The GEMÜ 656 2/2-way diaphragm valve has a low maintenance metal diaphragm actuator and is pneumatically operated. Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available. The valve body has a full bore design.
The GEMÜ 656 2/2-way diaphragm valve has a low maintenance metal diaphragm actuator and is pneumatically operated. Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available. The valve body has a full bore design.
- High flow rate due to straight through flow
- Suitable for media with a high solids content such as fibres, coarse particles and sludge
- High mechanical stability
- Valve can be cleaned without disassembly of actuator
