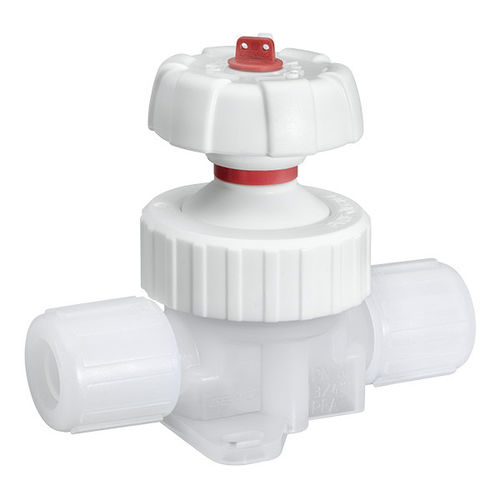

Diaphragm valve C67 CleanStar
manualfor chemicalsPTFE

diaphragm valve
diaphragm valve
diaphragm valve
diaphragm valve
Add to favorites
Compare this product


Characteristics

Type
diaphragm
Operation
manual
Media
for chemicals
Body
PTFE, PFA, PVDF
Applications
chemical, for pipes, high-purity, OEM
Number of channels
2/2-way
Associated function
reducing
Other characteristics
high-flow
DN

Max.: 25 mm
(0.984 in)

Min.: 4 mm
(0.157 in)

Pressure

Max.: 6 bar
(87 psi)

Min.: 0 bar
(0 psi)

Temperature

Max.: 150 °C
(302 °F)

Min.: -10 °C
(14 °F)

Description

The GEMÜ C67 HPW CleanStar ultra pure 2/2-way diaphragm valve is manually operated. All medium wetted parts are made of PVDF or PTFE. -High purity due to cleanroom manufacturing -High Flow version -High flow rates -Minimal deadleg -Optional flow direction -Also available as T valve -The valve is available with ECTFE union nut as an option. Thus you achieve: brief equipment rinsing times, clearly improved Kv values (High Flow), high "MTBF" and reduced costs Body configurations: 2/2-way body | T body Connection types: Flare | Flare SpaceSaver | PrimeLock® | PrimeLock® SpaceSaver | Spigot | Super 300 Type Pillar® SpaceSaver | Union end Connection standards: DIN Body materials: PFA | PP-H, grey | PP-H, natural | PVDF Body lining: Diaphragm materials: PTFE/EPDM Conformities*: EAC | FDA | TA Luft (German Clean Air Act)
