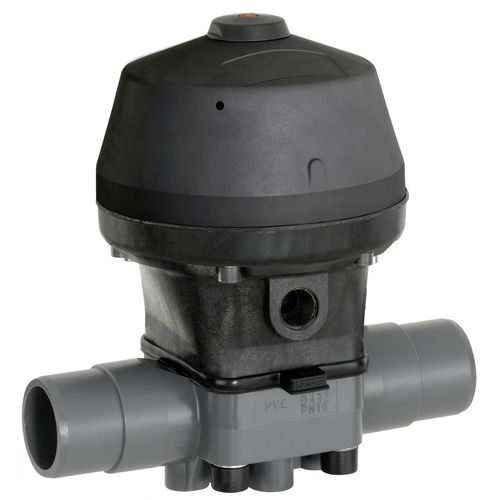

Diaphragm valve R690
pneumatically-operatedregulatingfor wastewater

diaphragm valve
diaphragm valve
diaphragm valve
diaphragm valve
diaphragm valve
Add to favorites
Compare this product


Characteristics

Type
diaphragm
Operation
pneumatically-operated
Function
regulating
Media
for wastewater, for industrial water, for chemicals
Body
flange, compact, PP, ABS, PVDF
Applications
industrial, chemical, for viscous liquids
Number of channels
2/2-way
Other characteristics
ANSI, normally closed, double-acting, normally open, high-flow
DN

Max.: 100 mm
(3.937 in)

Min.: 15 mm
(0.591 in)

Pressure

Max.: 10 bar
(145 psi)

Min.: 0 bar
(0 psi)

Temperature

Max.: 80 °C
(176 °F)

Min.: -10 °C
(14 °F)

Description

The GEMÜ R690 2/2-way diaphragm valve has a low maintenance membrane actuator and is pneumatically operated. Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available. The High-Flow valve body provides compact dimensions at high flow rates.Same mounting height planes over multiple nominal sizes Compact system design thanks to flow-optimized high-flow valve bodies Reduced control air consumption Modified spring sets available for applications with reduced control pressure Connection types: Flange | Spigot | Union end Connection standards: ANSI | ASTM | BS | DIN | EN | ISO | JIS Body materials: ABS | Inliner PP-H, grey / outliner PP, reinforced | Inliner PVDF/outliner PP, reinforced | PP, reinforced | PVC-U, grey | PVDF Diaphragm materials: EPDM | FKM | NBR | PTFE/EPDM Conformities*: EAC | FDA | NSF
