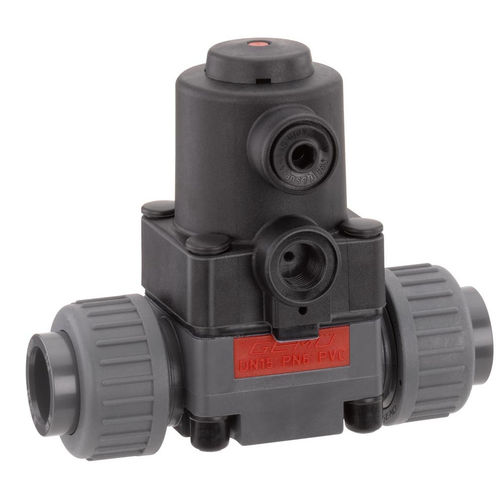

Diaphragm valve 610
pneumatically-operatedcontrolthreaded

diaphragm valve
diaphragm valve
diaphragm valve
diaphragm valve
Add to favorites
Compare this product


Characteristics

Type
diaphragm
Operation
pneumatically-operated
Function
control
Body
threaded, double, PTFE, EPDM, plastic, PP, NBR
Number of channels
2/2-way
Other characteristics
standard, DIN, normally closed, normally open, integral
DN

Min.: 12 mm (0.472 in)

Max.: 20 mm (0.787 in)

Pressure

Min.: 0 bar (0 psi)

Max.: 6 bar (87 psi)

Temperature

Min.: -10 °C (14 °F)

Max.: 80 °C (176 °F)

Description

The GEMÜ 610 2/2-way diaphragm valve has a low maintenance plastic piston actuator and is pneumatically operated. An integral optical position indicator is standard. Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available. Same mounting height planes over multiple nominal sizes High flow rates Integral optical position indicator and closing stroke limiter as standard Option with electrical position indicator Connection types: Flare | Solvent cement socket | Spigot | Threaded connection | Union end Connection standards: BS | DIN | ISO Body materials: PP, reinforced | PP-H, natural | PVC-U, grey | PVDF Body lining: Diaphragm materials: EPDM | FKM | NBR | PTFE/EPDM Conformities*: EAC | FDA | NSF
