Diaphragm valve 651
pneumaticstainless steel2/2-way

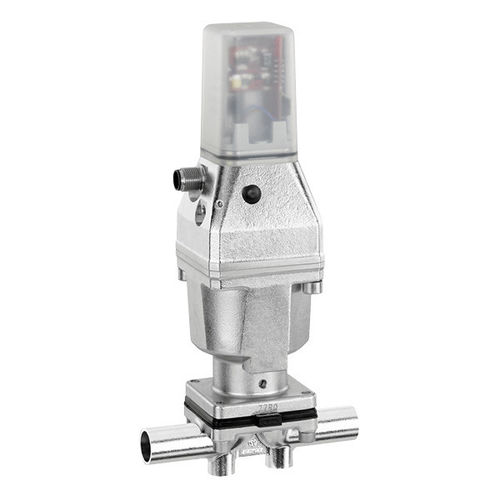

Diaphragm valve - 651 - GEMÜ Gebrüder Müller Apparatebau GmbH & Co. KG - pneumatic / stainless steel / 2/2-way
Diaphragm valve - 651 - GEMÜ Gebrüder Müller Apparatebau GmbH & Co. KG - pneumatic / stainless steel / 2/2-way
Diaphragm valve - 651 - GEMÜ Gebrüder Müller Apparatebau GmbH & Co. KG - pneumatic / stainless steel / 2/2-way - image - 2
Add to favorites
Compare this product


Characteristics

Type
diaphragm
Operation
pneumatic
Material$
stainless steel
Number of channels
2/2-way
Other characteristics
normally closed, normally open, pneumatic piston, sterile
DN

Min.: 4 mm
(0.157 in)

Max.: 25 mm
(0.984 in)

Pressure

Min.: 0 bar
(0 psi)

Max.: 10 bar
(145 psi)

Temperature

Min.: -10 °C
(14 °F)

Max.: 100 °C
(212 °F)

Description

The GEMÜ 651 2/2-way diaphragm valve has a stainless steel piston actuator and is pneumatically operated. The valve is designed for use in a sterile environment. The valve has a fully integrated automation module and an internal air supply. Normally Closed (NC) and Normally Open (NO) control functions are available. An integrated automation module is available as a combi switchbox or electro-pneumatic positioner. Features Reduced planning and cabling time thanks to integrated automation module and internal air supply Speed-AP function for fast commissioning CIP/SIP capable Technical specifications Sterilization temperature:Max. 150 °C Ambient temperature:0 to 60 °C Body configurations:2/2-way body | i-body | Multi-port body | T body | Tank valve body | Welding configuration Connection types:Clamp | Spigot | Threaded connection Connection standards:ANSI | ASME | BS | DIN | EN | ISO | JIS | SMS Body materials:1.4408, investment casting material | 1.4435 (316L), forged material | 1.4435 (BN2), forged material | 1.4435, investment casting material | 1.4539 (904L), forged material Diaphragm materials:EPDM | PTFE/EPDM Conformities:BSE/TSE | CRN | EAC | EHEDG | FDA | Oxygen | Reg. (EU) No. 10/2011 | Regulation (EC) No. 1935/2004 | Regulation (EC) No. 2023/2006 | TA Luft (German Clean Air Act) | USP
