Butterfly valve
electropneumaticelectrically-operatedwith handwheel

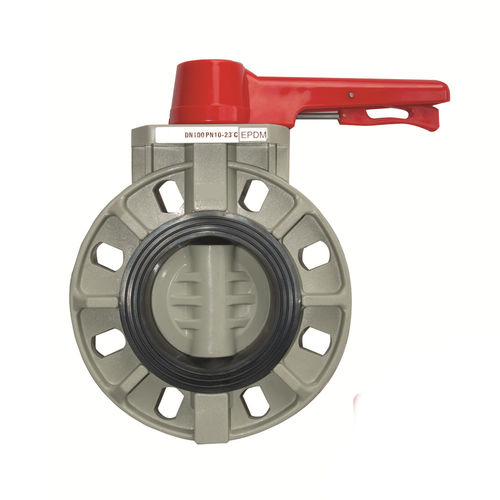

Butterfly valve - DIVATEC,SL - electropneumatic / electrically-operated / with handwheel
Butterfly valve - DIVATEC,SL - electropneumatic / electrically-operated / with handwheel
Butterfly valve - DIVATEC,SL - electropneumatic / electrically-operated / with handwheel - image - 2
Add to favorites
Compare this product
Go to the DIVATEC,SL website for more information

Characteristics

Type
butterfly
Operation
lever, with handwheel, pneumatically-operated, electrically-operated, electropneumatic
Function
adjustment, shut-off, drain, flow control
Media
for water, for chemical products, for liquid food products and beverages, for air
Body
flange, screw-in, soft-seat, wafer, 1-piece, rugged
Applications
for industrial applications, for the chemical industry, industrial, for process applications, flange, liquids, for pipes, for water treatment, for the mining industry, for storage tanks, shaft
Material
stainless steel, PTFE, EPDM, PVC, PP
Number of channels
2-channel
Fluid specification
for corrosive fluids, for viscous fluids
Associated function
outlet, service, unloading, filling
Other characteristics
bidirectional, ISO, high-flow, waterproof, standard, DIN, ANSI, high-pressure, with seal, corrosion-resistant, locking, high-temperature, with actuator
DN

Min.: 50 mm
(1.969 in)

Max.: 600 mm
(23.622 in)

Pressure

Min.: 4 bar
(58 psi)

Max.: 10 bar
(145 psi)

Temperature

Min.: 0 °C
(32 °F)

Max.: 80 °C
(176 °F)

Description

• DIN or ANSI flange connections • Robust, stainless steel shaft 304 • Manufactured in PVC-U body. PP / PP-GF • Gaskets in EPDM or FPM • Possibility of electric motor or pneumatic actuator DA, NA, NC • Manual lever actuation or with plastic reducer steering wheel Advantage • Direct mounting of pneumatic or electric actuator, in no type of complement. Applications • Construction of water treatment equipment Use • For sawing of piping systems Fluids • Neutral media and aggressive liquid or gaseous media if the valve components that contact the media are resistant to the service temperature according to the Divatec resistance list. • Contaminated media can reduce the closing function. This model can also be automated with electric or pneumatic actuator.
