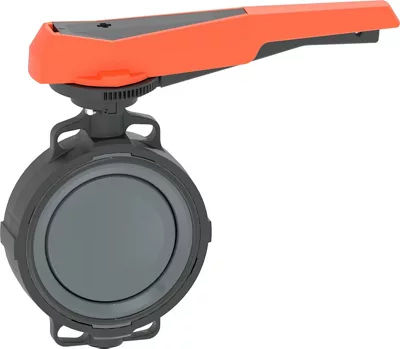

Butterfly valve 567levershut-offfor water
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- lever
- Function
- shut-off
- Media
- for water, for gas
- Body
- wafer, modular, IP67, IP65
- Applications
- for the chemical industry, for the food industry, for water treatment, for shipbuilding
- Material
- PP
- Other characteristics
- ISO, DIN, ANSI, corrosion-resistant
- DN
Max.: 600 mm
(23.622 in)Min.: 50 mm
(1.969 in)- Pressure
6 bar
(87 psi)- Flow rate
Max.: 15,900 m³/h
(561,503.2 ft³/h)Min.: 44 m³/h
(1,553.85 ft³/h)
Description
This butterfly valve has a modular design and an intelligent and simple operating principle. These features make it the ideal complement to any setup.
Made of corrosion-resistant and highly durable material. Wasy installation.
Features
Material: PP-H, DN350-DN600 material PP-R
Up to DN300: Mounting length according to EN558 (DN 50-200: line 25, DN250, 300 line 16), ISO
5752
Connections according to: ISO 7005 PN 10, EN 1092 PN 10, DIN 2501 PN 10, ANSI/ASME B 16.5 Class
150, BS 1560: 1989, BS 4504, JIS B 2220
More butterfly valves
We have other butterfly valves in our catalog. Contact us to find out all the valves we can offer you.
