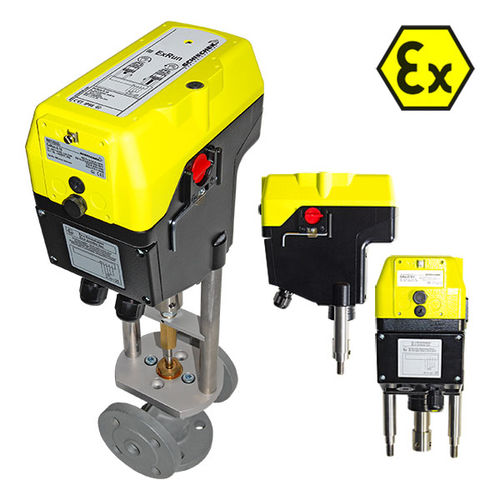

electric valve actuator / linear / non-spring return / compact
ExRun, RedRun, InRun

{{requestButtons}}

Characteristics

  • Type:

    electric

  • Movement:

    linear

  • Technology:

    non-spring return

  • Other characteristics:

    compact, aluminum, explosion-proof, ATEX, for control of shut-off, adjustable, small, variable-speed

  • Actuator force:

    Max.: 10,000 N

    Min.: 500 N

Description

Electrical, explosion proof linear motion actuators series ExRun and RedRun for automation of valves and other linear motion armatures.

- 500 N up to 10.000 N
- 5-60 mm stroke
- Certified according to ATEX, IECEx and more
- installation in hazardous locations
- for all kind of gas, vapours, mixtures and dust
- without spring return
- 24 up to 240 VAC/DC
- 5 motor running times adjustable on site
- On-off, 3-pos, 0-10 VDC, 4-20 mA mode
- 100 % overload protected
- Robust aluminium housing, IP66 protection
- Weight approx. 7,5 kg
- integrated heater for use from -20°C up to +40°C/+50°C
- integrated Ex-terminal box
- Manual override
- External adaptable aux. switches, terminal boxes and mounting brackets available
- Offshore/marine coating optional
- Adaptations for all typical linear valves available
- Series ExRun for use in zone 1, 2, 21 and 22
- Series RedRun for use in zone 2 and 22
- Series InRun for use in safe area (industrial applications)
