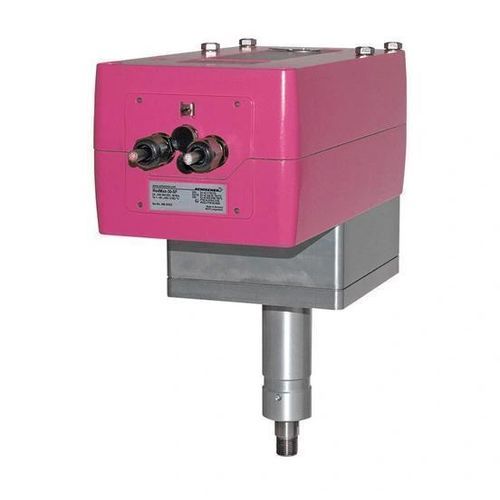

Motorized valve actuator RedMax + LINelectriclinearIP66
Add to favorites
Compare this product
Characteristics
- Type
- motorized, electric
- Movement
- linear
- Protection class
- IP66
- Other characteristics
- variable-speed, modulating, DC, with integrated safety, three-position, adjustable, ATEX 2GD, spring-return, for control of shut-off, explosion-proof, aluminum, compact, thermal
- Torque
Min.: 0 Nm
(0 ft.lb)Max.: 200,000,000 Nm
(147,512,429.86 ft.lb)- Voltage
Min.: 24 V
Max.: 240 V
Description
Product overview
Schischek RedMax + LIN explosionproof failsafe linear actuators for use in Zone 2, 22. Gas and dust certified. Compact design with fast spring-return times, universal power supply, IP66 aluminium housing and optional offshore/marine coating. Suitable for cost-effective spring-return automation of globe and 3-way valves.
Features
Technical specifications
Schischek RedMax + LIN explosionproof failsafe linear actuators for use in Zone 2, 22. Gas and dust certified. Compact design with fast spring-return times, universal power supply, IP66 aluminium housing and optional offshore/marine coating. Suitable for cost-effective spring-return automation of globe and 3-way valves.
Features
- Linear output drive
- Actuator with safety (failsafe) function for hazardous areas (Zone 2 and Zone 22)
- Operable as on/off, 3-position or modulating actuator
- Explosionproof to international standards for gas and dust zones
- UL and CSA certified variants available
- Compact dimensions for easy installation
- Universal power supply 24–240 VAC/VDC
- Spring-return failsafe option with fast return times
- Ingress protection IP66
- Robust aluminium housing
- Integrated heater for low-temperature operation
- On-site adjustable motor running time
- Integrated manual override
- Auto setup and selectable speeds
- Mechanical position indication
- Optional offshore/marine protective coating
- Optional external terminal box
Technical specifications
- Brand: Schischek
- Product family / range: Max+LIN
- Model / commercial designation: RedMax + LIN
- Certification / hazardous area: Certified for Zone 2 (gas) and Zone 22 (dust); IECEx and EU declarations/certificates available; UL/CSA variants available
- Intended valve types: Globe valves and 3-way valves
- Output: Linear drive with mechanical position indication
- Fail-safe: Spring-return option (fast return times)
- Power supply: Universal 24–240 VAC/VDC
- Ingress protection: IP66
- Housing: Aluminium (optional offshore/marine protective coating)
- Environmental control: Integrated heater for low-temperature environments
- Control features: On-site adjustable motor running time, auto setup, selectable speeds
- Manual operation: Integrated manual override
- Optional accessories: External terminal box
- Typical applications: Cost-effective spring-return automation for HVAC and industrial flow control in hazardous areas
