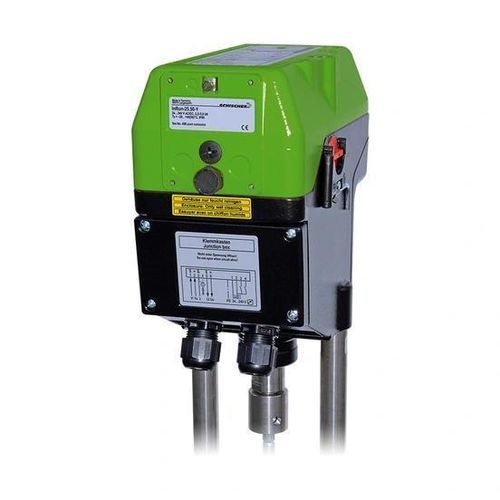

Electric actuator InRunlinearaluminumDC
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Material
- aluminum
- Motor
- DC, AC
- Voltage
- 24-volt, 230 V
- Protection class
- IP66
- Applications
- industrial, control, for process automation, for harsh environments
- Other characteristics
- compact, integrated, low-temperature
Description
Product overview
Schischek InRun linear actuators are designed for safe-area use and provide a compact, industrial-grade solution for automating 2- and 3-way valves. The unit features an IP66 aluminium housing with an integrated terminal box and selectable control modes to suit on/off or modulating applications.
Features
Technical specifications
Applications and benefits
Installation and maintenance
Schischek InRun linear actuators are designed for safe-area use and provide a compact, industrial-grade solution for automating 2- and 3-way valves. The unit features an IP66 aluminium housing with an integrated terminal box and selectable control modes to suit on/off or modulating applications.
Features
- Linear output drive suitable for valve automation
- Selectable control modes: 3-position on/off or modulating (model-dependent)
- Compact dimensions for space-constrained installations
- Universal power supply: 24–240 VAC/VDC
- Ingress protection IP66 for harsh environments
- Robust aluminium housing with optional offshore/marine coating
- Integrated terminal box for simplified wiring
- Integrated heater for low-temperature operation
- Up to 5 running times adjustable on-site
- Emergency manual override for maintenance and safety
Technical specifications
- Actuator type: linear
- Intended use: automation of 2- and 3-way valves
- Control modes: 3-position on/off or modulating (dependent on model/type)
- Power supply: universal 24–240 VAC/VDC
- Protection class: IP66
- Housing: aluminium (optional offshore/marine coating available)
- Terminal: integrated terminal box
- Temperature support: integrated heater for low-temperature operation
- Adjustability: up to 5 running times adjustable on-site
- Manual operation: emergency manual override provided
Applications and benefits
- Suitable for HVAC, process control, water treatment and industrial valve automation
- Flexible control modes enable on/off and modulating operation without major hardware changes
- Compact design eases retrofits and reduces installation footprint
- High ingress protection and optional marine coating extend service life in demanding environments
Installation and maintenance
- Integrated terminal box simplifies electrical connections and reduces installation time
- On-site adjustable running times and control settings reduce commissioning effort
- Emergency manual override and integrated heater support safe operation and maintenance in low-temperature or emergency conditions
