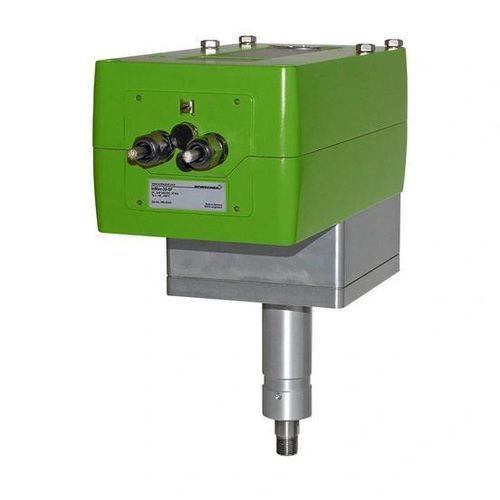

Electric valve actuator InMax + LINlinearsingle-acting with return springIP66
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Configuration
- single-acting with return spring
- Protection class
- IP66
- Other characteristics
- with handwheel, thermal, with indicator, with spring return, spring-return, compact, modulating, stainless steel, aluminum, three-position, variable-speed, adjustable
- Torque
Min.: 0 Nm
(0 ft.lb)Max.: 200,000,000 Nm
(147,512,429.86 ft.lb)- Voltage
Min.: 24 V
Max.: 240 V
Description
Overview
Schischek InMax + LIN failsafe linear actuators for use in safe areas. Compact design with fast spring-return times, universal 24-240 VAC/VDC power supply and IP66 aluminium housing. Optional stainless-steel housing and offshore/marine coatings are available. Cost-effective spring-return solution for automation of globe and 3-way valves.
Features
Technical specifications
Schischek InMax + LIN failsafe linear actuators for use in safe areas. Compact design with fast spring-return times, universal 24-240 VAC/VDC power supply and IP66 aluminium housing. Optional stainless-steel housing and offshore/marine coatings are available. Cost-effective spring-return solution for automation of globe and 3-way valves.
Features
- Linear output drive
- Operates as failsafe actuator, on/off, 3-position or modulating actuator
- Compact dimensions for easy installation and space-saving
- Universal power supply 24 - 240 VAC/VDC
- Optional spring-return (failsafe) mechanism
- Ingress protection IP66
- Robust aluminium housing
- Optional stainless-steel housing and offshore/marine coatings
- Integrated heater for low-temperature operation
- Adjustable motor running time on site
- Integrated manual override
- Auto setup and selectable speeds
- Mechanical position indication
- Optional external terminal box
Technical specifications
- Brand: Schischek
- Product family / range: Max+LIN
- Product name / model: InMax + LIN
- Function: Failsafe linear actuator with optional spring-return
- Suitable for: Globe valves and 3-way valves
- Power supply: Universal 24 - 240 VAC/VDC
- Ingress protection: IP66
- Housing: Aluminium (optional stainless steel)
- Optional coatings: Offshore / marine coatings
- Environment: Designed for safe (non-hazardous) areas
- Controls: On/off, 3-position, modulating
- Auxiliary: Integrated heater, manual override, mechanical position indication
