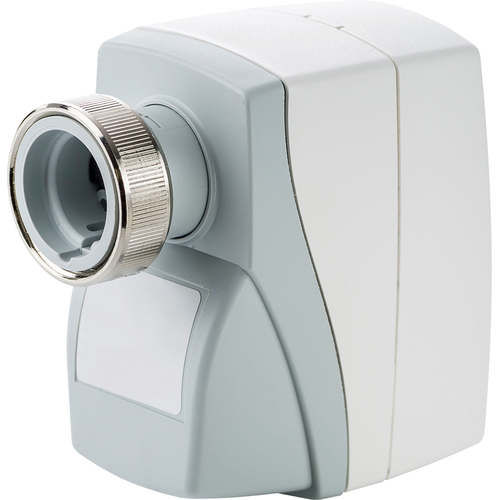

Battery-powered valve actuator SAB05

with servo-motorIP40wireless

Battery-powered wireless EasySens® valve actuator for individual room temperature control. The SAB05 is compatible with the STC-MSG server (for stand-alone solutions) or EasySens® gateways to integrate into BUS networks. Parameterisation can be done through airConfig software. The SAB05 is completely wireless and powered by 3x AA batteries. Adapters are available for numerous valve manufacturers. • Application/type : Actuator • Purpose : Room Climate Control • Measured values : temperature • Interface : EnOcean (868 MHz) • Functions : heating actuator operation, self-control mode, automatic closing point control, frost protection • Configuration : airConfig • Sensor : integrated digital temperature transmitter • Radio technology : EnOcean (IEC 14543-3-10) 868 MHz, transmission power <10 mW, EEP A5-20-01 (4BS) • Data transmission : bidirectional, measuring and transmission interval: every 2..20 minutes, optionally configurable, internal antenna • Operating range temperature (°C) : 0..+50 • Operating ranges temperature (°C) : 0..+50 • Operating range humidity : max. 85% rH non-condensing • Power supply : battery type AA (3x) • Display : LED for status feedback, multicoloured • Enclosure : PC, latching battery compartment lid • Colour : pure white, light grey • Protection (IP) : IP40, according to EN 60529 • Mounting : screw mounting M30x1,5 • Delivery content : incl. battery type AA (3x) • Packaging : case packaging • Device length (mm) : 85 • Device width (mm) : 47 • Device height (mm) : 92
